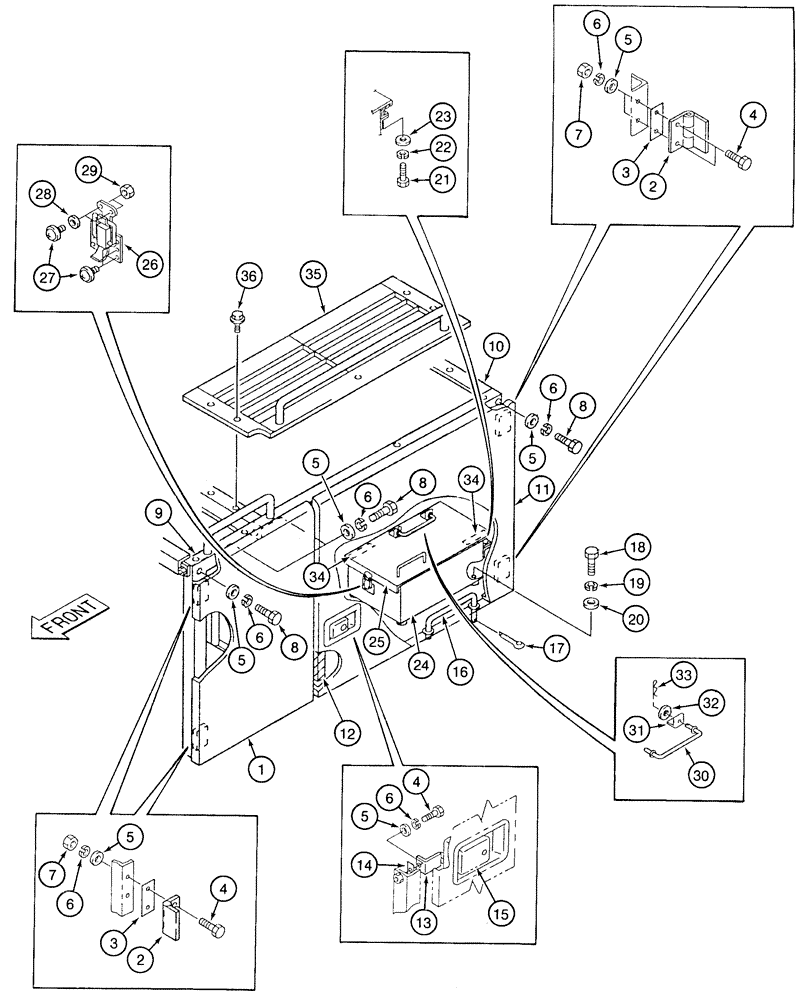

Запчасти Case 9050 (9-18) - UPPER STRUCTURE, LEFT-HAND SIDE COVER AND RELATED PARTS (09) - CHASSIS

1

156905A1

SIDE ASSY.

COVER left-hand, was 151113A1, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

HINGE cover

2шт.

3

152186A1

BLOCK

SHIM 2.5 mm thick

1шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

8шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

6

892-11012

LOCK WASHER,M12

20шт.

7

829-1412

NUT,M12, Cl 10.9

8шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

12шт.

9

152084A1

FRAME ASSY

sheet metal left-hand side

1шт.

10

152093A1

FRAME ASSY

sheet metal rear, left-hand

1шт.

11

156906A1

SIDE ASSY.

DOOR radiator access left-hand, was 151114A1

1шт.

12

150964A1

CUSHION ASSY.

PAD insulation

1шт.

13

151683A1

BRACKET

angle 90°, sheet metal mounting

1шт.

14

151685A1

BLOCK

SHIM plate

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE access door

1шт.

16

151791A1

STAY

ROD retaining access door

3шт.

17

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

3шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

19

892-11010

LOCK WASHER,M10

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

22

892-11006

LOCK WASHER,M6

2шт.

23

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

24

153130A1

BOX

tool

1шт.

25

153135A1

COVER

box

1шт.

26

153133A1

CATCH

tool box

1шт.

27

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head catch retaining

8шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

29

825-1405

NUT,M5, Cl 8

8шт.

30

153132A1

STAY

HANDLE tool box

1шт.

31

NSS

NOT SOLD SEPARAT

BRACKET angle, tool box handle

2шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

33

733-1616

COTTER PIN,M1.6 x 16

1.6 x 16 mm

2шт.

34

150396A1

CUSHION ASSY.

rubber

2шт.

35

152073A1

COVER

top right-hand

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special access cover

5шт.
