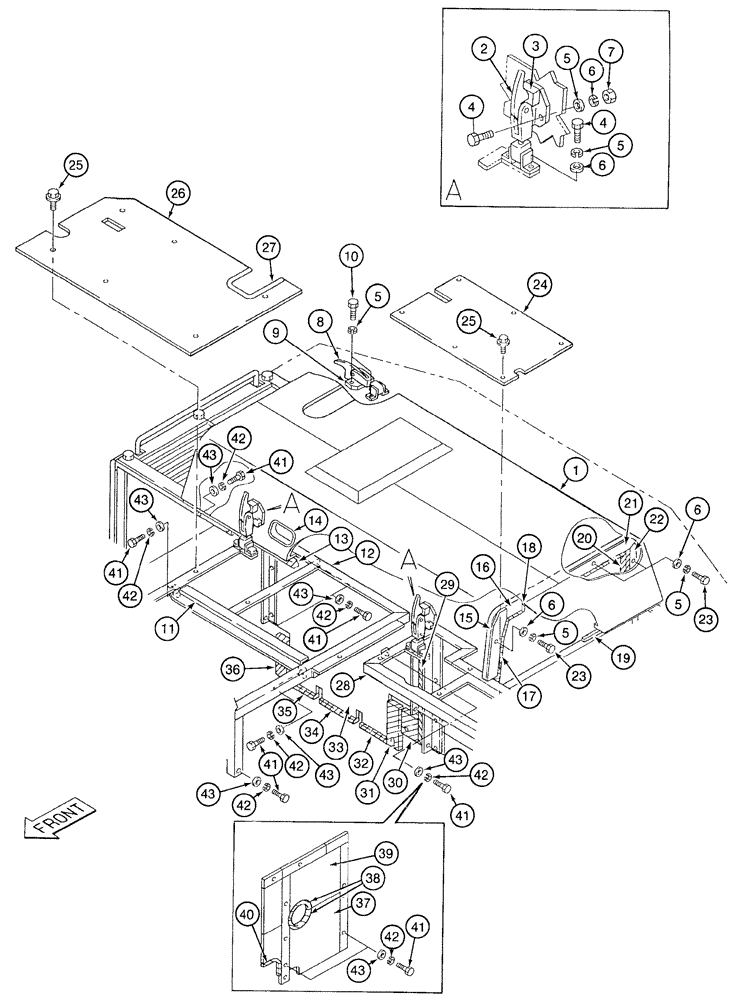

Запчасти Case 9050 (9-14) - UPPER STRUCTURE, HOOD AND INSULATION PADS (09) - CHASSIS

1

152041A1

HOOD

engine cover

1шт.

2

151356A1

LOCK ASSY

hood left-hand

1шт.

2

151361A1

HANDLE

hood right-hand

1шт.

3

150785A1

STOP LOCK

door assembly

2шт.

5

892-11008

LOCK WASHER,8mm ID

24шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

150854A1

FASTENER

top cover

1шт.

9

150856A1

STOP LOCK

top cover

1шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

4шт.

11

151335A1

FRAME ASSY

hood center

1шт.

12

152064A1

FRAME ASSY

hood center, rear

1шт.

13

151596A1

CUSHION ASSY.

foam hood frame

1шт.

14

150484A1

HANDLE

recessed

1шт.

15

152047A1

RETAINER

seal hood, left-hand end

1шт.

16

152052A1

RETAINER

seal hood, left-hand end, upper front

1шт.

17

152043A1

SEAL

insulation hood, left-hand end

1шт.

18

152050A1

SEAL

insulation hood, left-hand end, upper

1шт.

19

151593A1

CUSHION ASSY.

insulation hood end

2шт.

20

152058A1

SEAL

insulation hood, left-hand end, rear

1шт.

21

152055A1

RETAINER

insulation pad hood, left-hand end

1шт.

22

152060A1

RETAINER

insulation pad hood, left-hand end

1шт.

23

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

12шт.

24

152076A1

COVER

top left-hand

1шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special access cover

12шт.

26

151293A1

COVER

top center

1шт.

27

151368A1

CUSHION ASSY.

TRIM edge rubber, center cover cutout

1шт.

28

156550A1

FRAME

sheet metal top, left-hand, was 156704A1

1шт.

29

151163A1

SEAL

insulation

1шт.

30

151642A1

INSULATOR

1шт.

31

151646A1

INSULATOR

1шт.

32

151173A1

SEAL

insulation

1шт.

33

151300A1

COVER

side front, center

1шт.

34

151176A1

SEAL

PAD insulation

1шт.

35

151173A1

SEAL

PAD insulation

1шт.

36

151651A1

INSULATOR

PAD

1шт.

37

156552A1

COVER

side lower front, left-hand, was 156705A1

1шт.

38

152069A1

CUSHION ASSY.

TRIM edge rubber, side cover hole

2шт.

39

156551A1

COVER

side front, upper left-hand, was 156706A1

1шт.

40

152071A1

CUSHION ASSY.

TRIM edge rubber, lower left-hand side cover

1шт.

41

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

29шт.

42

892-11012

LOCK WASHER,M12

29шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

29шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
