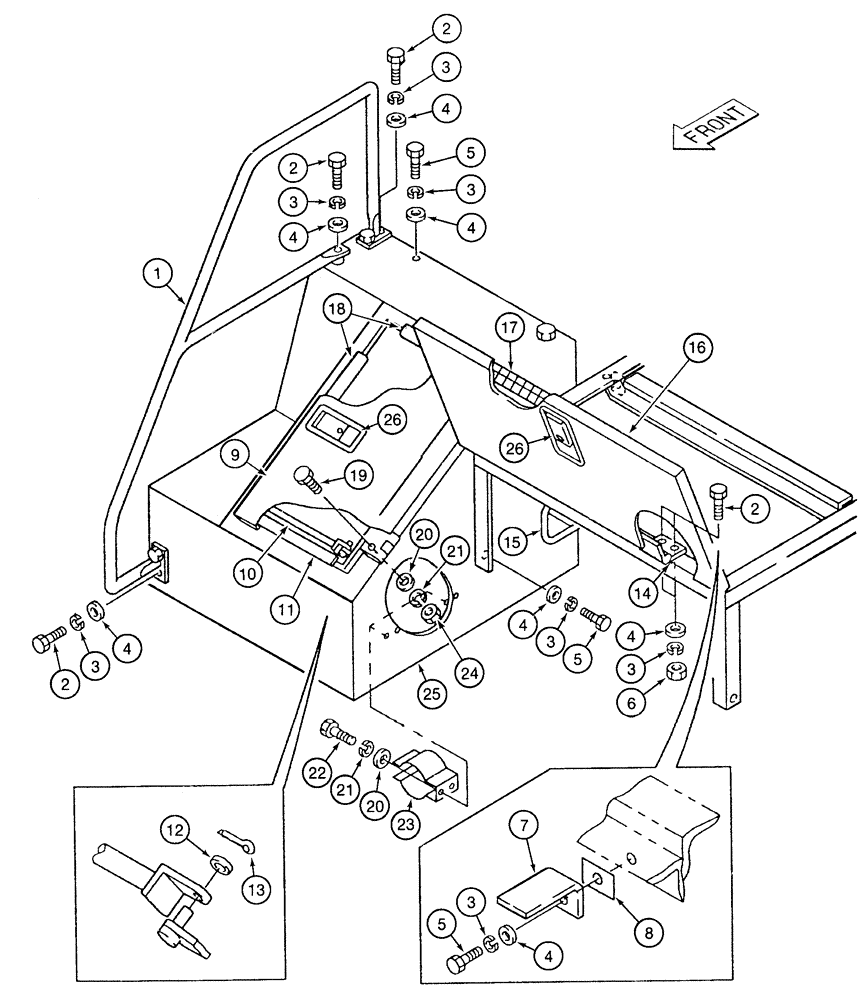

Запчасти Case 9050 (9-12) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS

1

151350A1

STAY

RAILING cover

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

9шт.

3

892-11012

LOCK WASHER,M12

14шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

5шт.

6

829-1412

NUT,M12, Cl 10.9

4шт.

7

151683A1

BRACKET

angle, 90°, sheet metal mounting

1шт.

8

151685A1

BLOCK

SHIM plate

1шт.

9

151326A1

BOX

DOOR compartment access right-hand front

1шт.

10

152694A1

CYLINDER

front access door

1шт.

11

152186A1

BLOCK

SHIM 2.5 mm thick

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

732-1612

COTTER PIN,M1.6 x 12

1.6 x 12 mm

2шт.

14

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

15

151366A1

CUSHION ASSY.

GROMMET rubber

1шт.

16

151343A1

DOOR

access swing motor

1шт.

17

150964A1

CUSHION ASSY.

PAD insulation

2шт.

18

150940A1

PLATE

BUMPER rubber door

2шт.

19

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

8шт.

21

892-11012

LOCK WASHER,M12

8шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

23

152772A1

HOLDER

grease gun

2шт.

24

829-1412

NUT,M12, Cl 10.9

4шт.

25

151780A1

BOX

COMPARTMENT front, right-hand

1шт.

26

150938A1

LOCK

recessed

1шт.
