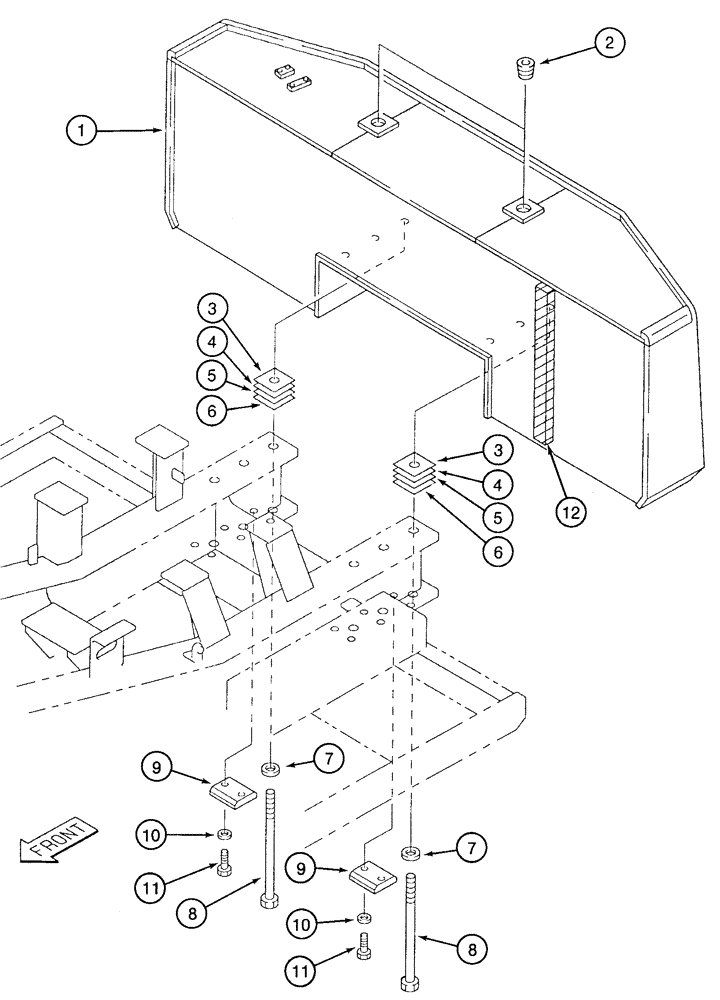

Запчасти Case 9050 (9-10) - COUNTERWEIGHT (09) - CHASSIS

1

151355A1

WEIGHT

SPARE PART counter rear, 13280 pounds (6024 kg) for standard 9050 Excavator

1шт.

1

158768A1

WEIGHT

SPARE PART counter rear, 17640 pounds (8000 kg) for 9050 Timber King

1шт.

2

150139A1

PLUG

special rubber, for standard 9050 Excavator

2шт.

2

157671A1

PLUG

special rubber, for 9050 Timber King

2шт.

3

151040A1

SHIM

counterweight, 0.03 inch thick

1шт.

4

151043A1

SHIM

counterweight, 0.05 inch thick

1шт.

5

151045A1

SHIM

counterweight, 0.09 inch thick

1шт.

6

151048A1

SHIM

counterweight, 0.18 inch thick

1шт.

7

150189A1

WASHER

flat, special, 27 mm

4шт.

8

150180A1

SPECIAL BOLT

hex

4шт.

9

150959A1

PLATE

counterweight mounting

4шт.

10

150811A1

WASHER

flat, special, 12 mm

8шт.

11

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

12

151624A1

SEAL

PAD counterweight mounting

1шт.
