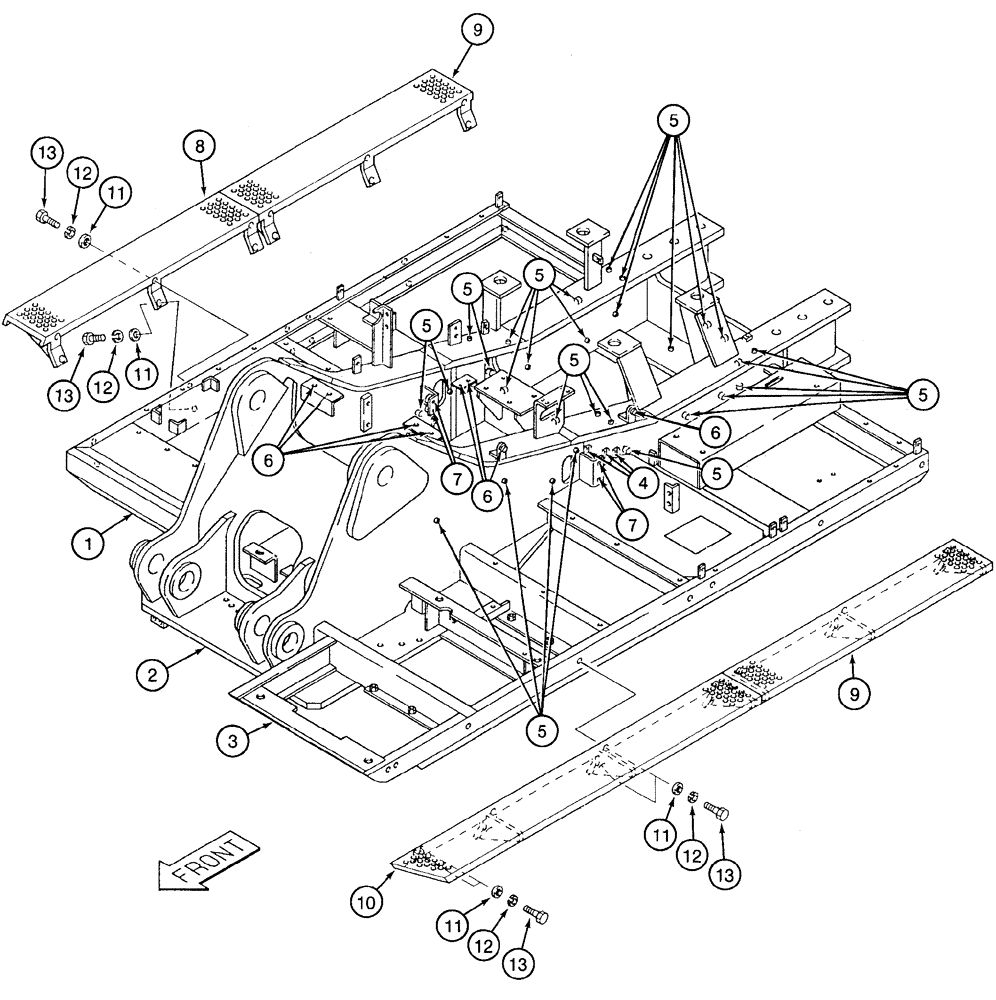

Запчасти Case 9050 (9-06) - TURNTABLE AND WALKWAYS (09) - CHASSIS

158914A1

FRAME ASSY

revolving, for standard 9050 Excavator, Includes: Ref. 1 - 3

1шт.

163855A1

FRAME ASSY

revolving, for 9050 Timber King models, Includes: Ref. 1 - 3, Serial Range: -DAC0500101

1шт.

163853A1

FRAME

revolving, for 9050 Timber King models, Includes: Ref. 1 - 3, Start Serial: DAC0500101

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM turntable right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME boom mounting

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM turntable left-hand

1шт.

4

150372A1

BAR ASSY.

weld-on

3шт.

5

150508A1

BOSS

BLOCK retaining, tube clamp (weld-on)

29шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

8шт.

7

829-1310

NUT,M10, Cl 10

Hex

4шт.

8

151094A1

WALKWAY

CATWALK turntable right-hand front

1шт.

9

150993A1

WALKWAY

CATWALK turntable right and left-hand rear

2шт.

10

151240A1

WALKWAY

CATWALK turntable left-hand front

1шт.

11

150900A1

WASHER

flat, 12 mm

26шт.

12

892-11012

LOCK WASHER,M12

26шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

26шт.
