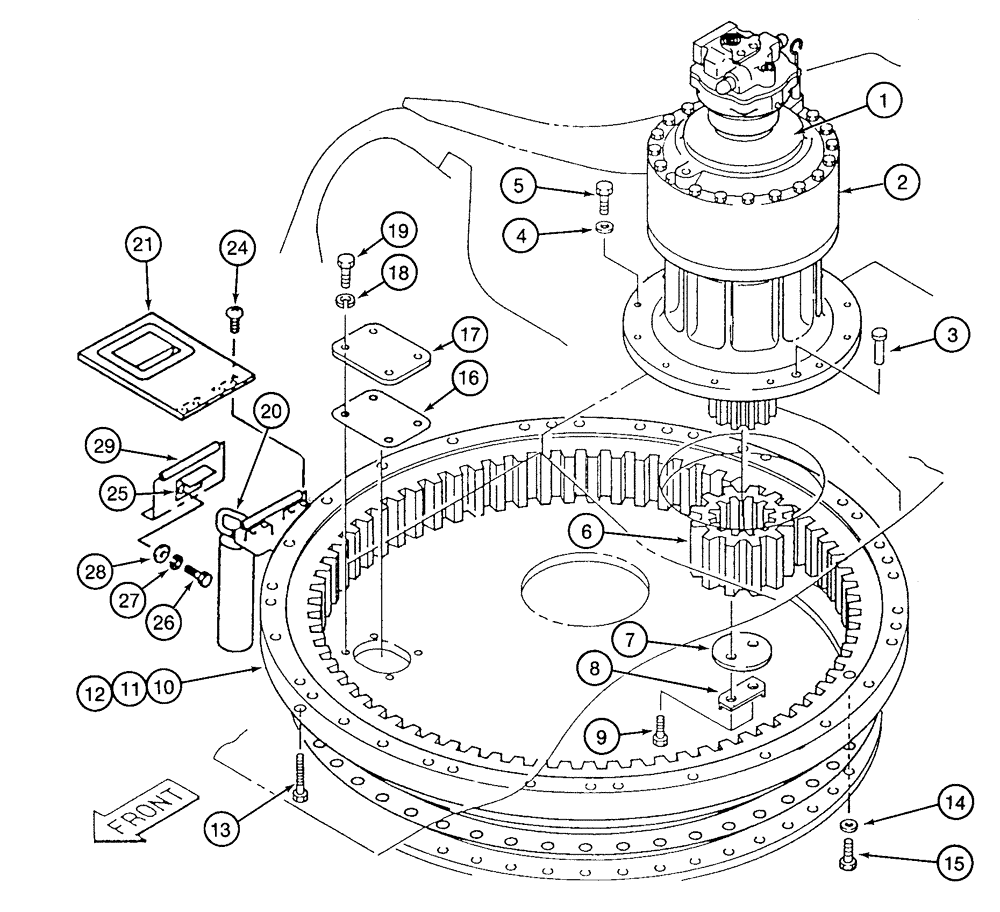

Запчасти Case 9050 (9-03A) - TURNTABLE BEARING, P.I.N. DAC0500101 AND AFTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
156777A1
MOTOR
swing, no longer available, replaced by 158852A1, parts list Figures 8-58 - 8-62, Includes: Ref. 1 & 2
1шт.
158852A1
MOTOR
swing, parts list Figures 8-58 - 8-62
1шт.
1
156778A1
MOTOR
hydraulic, parts list Figures 8-58 & 8-60
1шт.
2
150523A1
REDUCER
GEAR, 156777A1 swing motor, no longer available, replaced by 158853A1, parts list Figure 8-62
1шт.
2
158853A1
REDUCER
GEAR, parts list Figure 8-62
1шт.
3
150317A1
HEADED PIN,24mm OD x 90mm L
1шт.
4
151003A1
WASHER
flat, special
12шт.
5
827-24090
BOLT,Hex, M24 x 3 x 90mm, Cl 10.9
12шт.
6
150506A1
PINION
1шт.
7
150285A1
PLATE, LOCKING
end
1шт.
8
114262A1
LOCK WASHER
1шт.
9
626-16040
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
Hex, M16 x 40, 10.9, Full Thd
2шт.
162087A1
BEARING,1192 mm ID x 1512 mm OD x 135 mm
RING, GEAR BEARING, turntable for standard 9050 Excavator, was 158913A1 or 161488A1
1шт.
161701A1
BEARING
BEARING, turntable for 9050 Timber King only, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
BEARING, turntable
1шт.
11
161698A1
SEAL
bearing, upper
1шт.
12
161700A1
SEAL
bearing, lower
1шт.
13
827-24140
BOLT,Hex, M24 x 3 x 140mm, Cl 10.9
38шт.
14
150822A1
WASHER,25mm ID x 48mm OD x 6mm Thk
flat, special
68шт.
15
827-24090
BOLT,Hex, M24 x 3 x 90mm, Cl 10.9
30шт.
16
151070A1
GASKET
access cover
1шт.
17
151068A1
LID
access
1шт.
18
892-11012
LOCK WASHER,M12
4шт.
19
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
4шт.
20
150512A1
PIN
swing lock
1шт.
21
158791A1
DOOR
access
1шт.
22
158920A1
LOCK
access door, if used, not shown
1шт.
23
158921A1
HINGE
access door, if used, not shown
2шт.
24
840-1616
SCREW,Pan, M6 x 16mm, Cl 4.8
4шт.
25
158792A1
BRACKET
cushion mounting
1шт.
26
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
2шт.
27
892-11012
LOCK WASHER,M12
2шт.
28
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
2шт.
29
158793A1
CUSHION
rubber
2шт.
Выбрано товаров: 34
