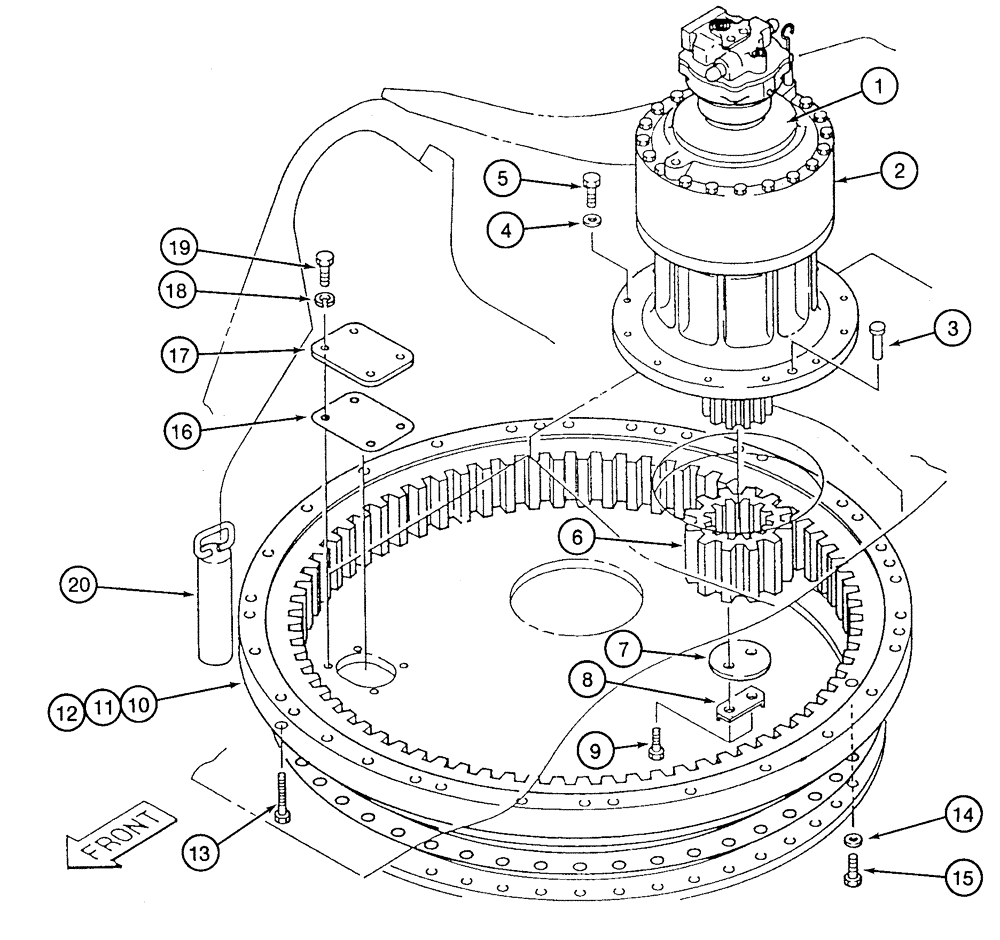

Запчасти Case 9050 (9-02) - TURNTABLE BEARING, PRIOR TO P.I.N. DAC0500101 (09) - CHASSIS

156777A1

MOTOR

swing no longer available, replaced by 158852A1, parts list Figures 8-58 - 8-62, Includes: Ref. 1 & 2

1шт.

158852A1

MOTOR

swing, parts list Figure 8-58 - 8-62, Includes: Ref. 1 & 2

1шт.

1

156778A1

MOTOR

hydraulic, parts list Figure 8-58 & 8-60

1шт.

2

150523A1

REDUCER

GEAR, 156777A1 swing motor, no longer available, replaced by 158853A1, parts list Figure 8-62

1шт.

2

158853A1

REDUCER

GEAR, parts list Figure 8-62

1шт.

3

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

4

151003A1

WASHER

flat, special

12шт.

5

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

12шт.

6

150506A1

PINION

1шт.

7

150285A1

PLATE, LOCKING

end

1шт.

8

114262A1

LOCK WASHER

1шт.

9

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Hex, M16 x 40, 10.9, Full Thd

2шт.

158767A1

SLEWING RING

BEARING, turntable was 150909A1, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING turntable

1шт.

11

156691A1

SEAL

bearing, upper

1шт.

12

156692A1

SEAL

bearing, lower

1шт.

13

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

32шт.

14

151003A1

WASHER

flat, special

30шт.

15

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

30шт.

16

151070A1

GASKET

access cover

1шт.

17

151068A1

LID

access

1шт.

18

892-11012

LOCK WASHER,M12

4шт.

19

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

20

150512A1

PIN

swing lock

1шт.
