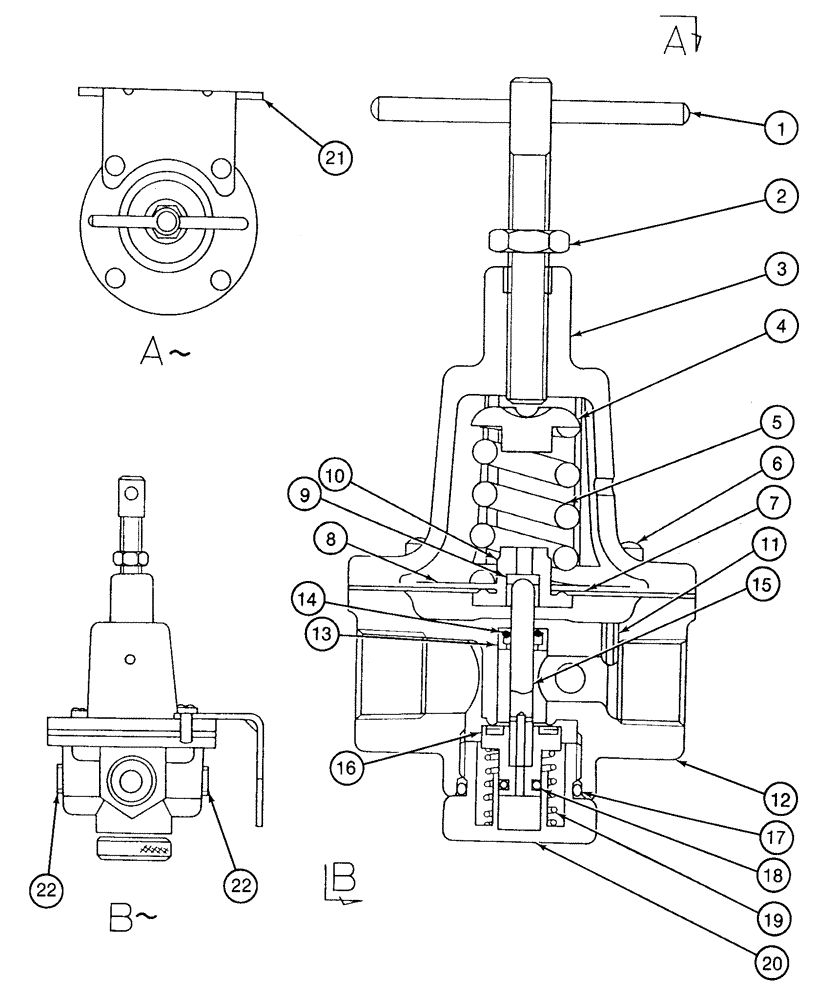

Запчасти Case 9050 (8-90) - 152845A1 REDUCING VALVE (08) - HYDRAULICS

152845A1

VALVE

pressure reducing, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW adjusting, T-type

1шт.

2

NSS

NOT SOLD SEPARAT

NUT jam, adjusting screw

1шт.

3

NSS

NOT SOLD SEPARAT

COVER top

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING compression

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW cover retaining

4шт.

155845A1

DIAPHRAGM

reducing valve, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM reducing valve

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER, Serial Range: spring-plate

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL diaphragm

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET diaphragm

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE siphon

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE plunger

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, O-ring, Serial Range: plunger-guide

1шт.

155846A1

PLUNGER

valve, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT plunger

1шт.

17

155228A1

O-RING

spring guide

1шт.

18

155229A1

O-RING

plunger seat

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING plunger return

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE plunger return spring

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET valve mounting

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG port

2шт.
