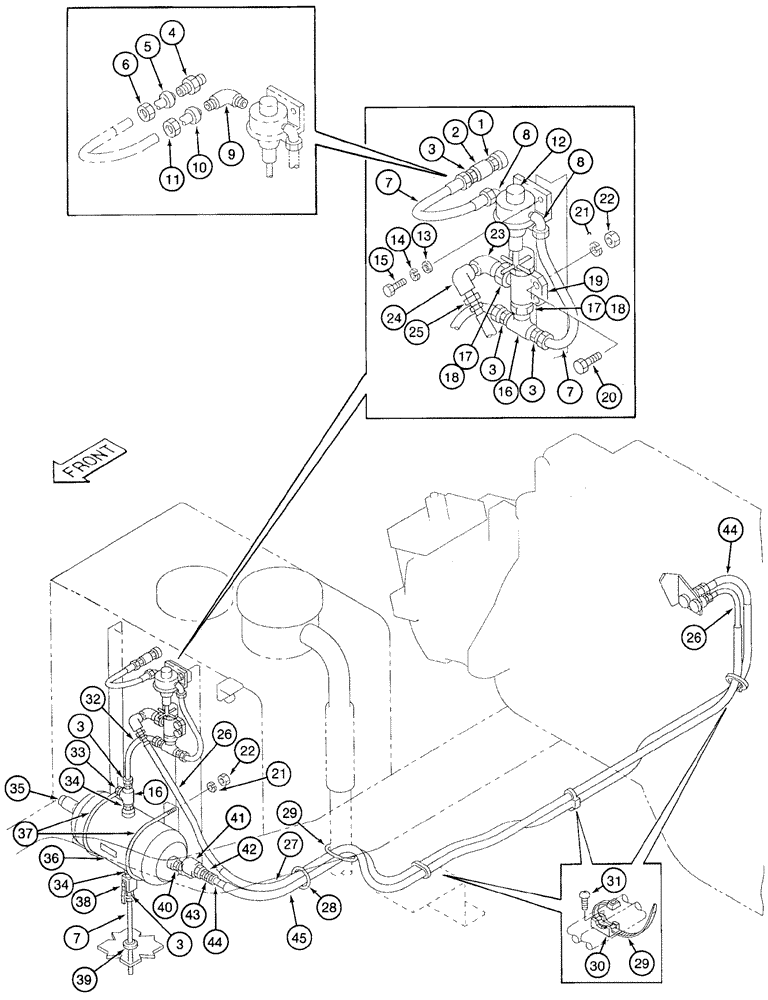

Запчасти Case 9050 (8-88) - AIR LINES (08) - HYDRAULICS

1

152460A1

VALVE

check

1шт.

2

150914A1

SOCKET

FITTING straight air line

1шт.

3

152946A1

HYD CONNECTOR

straight, Includes: Ref. 4 - 6

5шт.

4

153527A1

CONNECTOR, ELEC

CONNECTOR straight

1шт.

5

153528A1

SLEEVE

compression

1шт.

6

153529A1

UNION

NUT compression fitting

1шт.

7

152953A1

TUBE

nylon

1шт.

8

152948A1

ELBOW

90°, Includes: Ref. 9 - 11

2шт.

9

153530A1

ELBOW

compression

1шт.

10

153528A1

SLEEVE

compression

1шт.

11

153529A1

UNION

NUT compression fitting

1шт.

12

152845A1

VALVE

pressure reducing, parts list Figure 8-90

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

892-11006

LOCK WASHER,M6

2шт.

15

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

16

152135A1

TEE

at governor and reservoir

2шт.

17

153065A1

SOCKET

ADAPTER special

2шт.

18

152510A1

GASKET

, Serial Range: GASKET-governor

2шт.

19

153063A1

GOVERNOR

air line

1шт.

21

892-11008

LOCK WASHER,8mm ID

6шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

23

152218A1

ELBOW

90° at governor

1шт.

24

153602A1

ELBOW

90°

1шт.

25

153603A1

ADAPTER

straight hydraulic

1шт.

26

153353A1

LARGE HOSE

HOSE,LARGE air line, Serial Range: governor-bulkhead

1шт.

27

150417A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2500 mm Length

GUARD air line hose

1шт.

28

150067A1

MOUNTING CLIP

tie, 150 mm long

1шт.

29

150071A1

MOUNTING CLIP

STRAP tie, 365 mm long

1шт.

30

150860A1

COLLAR

BRACKET support

3шт.

31

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

Clamp bracket mounting

3шт.

32

152952A1

TUBE

nylon air line, governor to air reservoir

1шт.

33

150990A1

PLUG

air line

1шт.

34

150847A1

HYD CONNECTOR

CONNECTOR straight air line at reservoir

2шт.

35

153060A1

VALVE

relief air pressure

1шт.

36

153058A1

AIR TANK

1шт.

37

150119A1

U-BOLT,M8 x 170mm W x 105mm L

BOLT "U" air reservoir retaining

2шт.

38

158923A1

DRAIN VALVE

air, at reservoir, was 152944A1

1шт.

39

150710A1

GROMMET

rubber

1шт.

40

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

41

153057A1

VALVE

check air line

1шт.

42

152037A1

BUSHING

reducer

1шт.

43

150073A1

ADAPTER

straight air line hose

1шт.

44

153352A1

LARGE HOSE

HOSE,LARGE air, Serial Range: reservoir-bulkhead

1шт.

45

150779A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated, 90-1/2 inch (2300 mm) long

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
