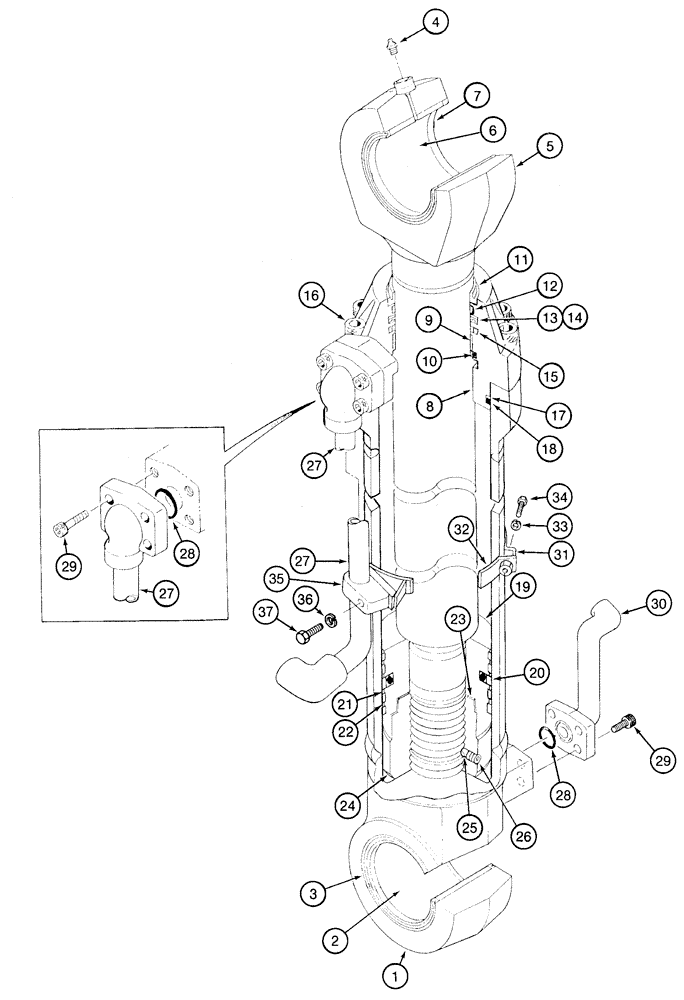

Запчасти Case 9050 (8-86) - BUCKET CYLINDER, STANDARD PRODUCTION (08) - HYDRAULICS

151715A1

CYLINDER ASSY.

SPARE PART 5-1/2 (140) ID x 50-1/4 inch (1275 mm) stroke, Includes: Ref. 1 - 37

1шт.

155901A1

CYLINDER

Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

155423A1

BUSHING

Tube

1шт.

3

155151A1

WIPER SEAL

WIPER mounting pin

2шт.

4

153630A1

LUBE NIPPLE

straight

1шт.

155886A1

ROD ASSY.

cylinder, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

6

155424A1

BUSHING

Cylinder rod

1шт.

7

155152A1

BACK-UP RING

WIPER, Mounting pin

2шт.

155883A1

CYLINDER END CAP

GLAND, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

9

155418A1

BUSHING

gland

1шт.

10

155706A1

RING, SNAP

RING SNAP retaining gland bushing

1шт.

11

155128A1

BACK-UP RING

WIPER piston rod

1шт.

Part of Seal Kit P/N 158846A1

1шт.

12

155337A1

BACK-UP RING

piston rod

1шт.

Part of Seal Kit P/N 158846A1

1шт.

13

155238A1

BACK-UP RING

U-cup seal

1шт.

Part of Seal Kit P/N 158846A1

1шт.

14

155112A1

RING

U-cup piston rod

1шт.

Part of Seal Kit P/N 158846A1

1шт.

15

155150A1

SCRAPER RING

buffer piston rod

1шт.

Part of Seal Kit P/N 158846A1

1шт.

16

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

hex socket, 22 - 2.5 x 75 mm, class 12.9

8шт.

17

155233A1

SEALING RING

gland seal

1шт.

Part of Seal Kit P/N 158846A1

1шт.

18

154776A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158846A1

1шт.

19

155980A1

PISTON

cylinder

1шт.

20

155343A1

SEALING RING

piston

1шт.

Part of Seal Kit P/N 158846A1

1шт.

21

155321A1

RING

slide piston, inner

2шт.

Part of Seal Kit P/N 158846A1

1шт.

22

155338A1

BACK-UP RING

wear piston, outer

2шт.

Part of Seal Kit P/N 158846A1

1шт.

23

155732A1

SHIM

special

1шт.

Part of Seal Kit P/N 158846A1

1шт.

24

156229A1

NUT

piston retaining

1шт.

25

155981A1

BALL

Steel, Nut locking

1шт.

26

156228A1

SET SCREW

Special

1шт.

27

155536A1

HYD TUBE

hydraulic gland end

1шт.

28

154543A1

O-RING

Hydraulic tube

2шт.

29

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

8шт.

30

155535A1

HYD TUBE

hydraulic cylinder tube end

1шт.

31

156375A1

MOUNTING CLIP

plain half

2шт.

32

156378A1

MOUNTING CLIP

band tube support half

2шт.

33

156227A1

WASHER

lock, special

4шт.

34

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

35

155716A1

COLLAR

tube

2шт.

36

892-10012

LOCK WASHER,M12

2шт.

37

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

158846A1

SEAL KIT

seal, Includes: Ref. 11-15, 17, 18 and 20-23, was 156009A1

1шт.
