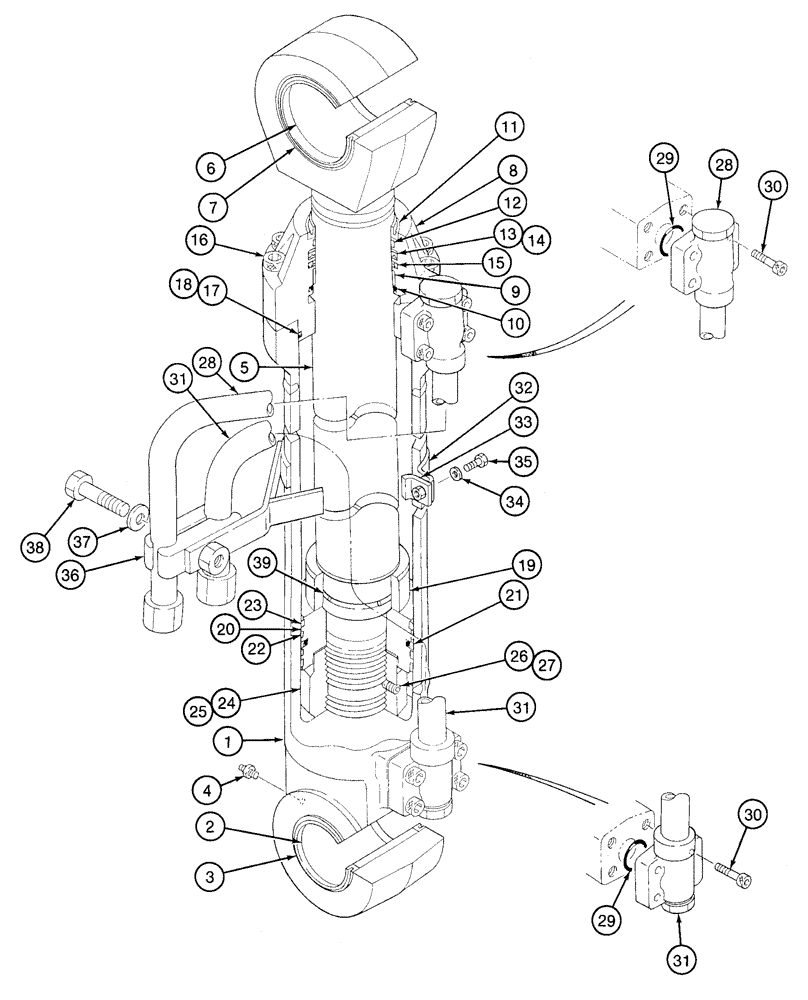

Запчасти Case 9050 (8-82) - BOOM CYLINDERS (08) - HYDRAULICS

151148A1

CYLINDER

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke right-hand, Includes: Ref. 1 - 39

1шт.

151151A1

CYLINDER

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke left-hand, Includes: Ref. 1 - 39

1шт.

155890A1

CYLINDER

Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

155425A1

BUSHING

Tube

1шт.

3

155151A1

WIPER SEAL

mounting pin

2шт.

4

153630A1

LUBE NIPPLE

straight

1шт.

155888A1

PISTON

ROD, cylinder, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

6

155426A1

BUSHING

cylinder rod

1шт.

7

155121A1

BACK-UP RING

WIPER mounting pin piston rod

1шт.

155885A1

CYLINDER END CAP

GLAND, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

9

155429A1

BUSHING

gland

1шт.

10

155695A1

RING, SNAP

RING SNAP retaining gland bushing

1шт.

11

155125A1

BACK-UP RING

WIPER piston rod

1шт.

Part of Seal Kit P/N 156001A1

1шт.

12

155342A1

BACK-UP RING

SEAL piston rod

1шт.

Part of Seal Kit P/N 156001A1

1шт.

13

155236A1

BACK-UP RING

U-cap seal

1шт.

Part of Seal Kit P/N 156001A1

1шт.

14

155115A1

RING

U-cap piston rod

1шт.

Part of Seal Kit P/N 156001A1

1шт.

15

155154A1

SEALING RING

buffer piston rod

1шт.

Part of Seal Kit P/N 156001A1

1шт.

16

863-22075

HEX SOC SCREW,M22 x 75mm, Cl 12.9

hex socket, 22 - 2.5 x 75 mm, class 12.9

8шт.

17

155233A1

SEALING RING

gland seal

1шт.

Part of Seal Kit P/N 156001A1

1шт.

18

154776A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 156001A1

1шт.

19

155735A1

BUMPER

RING cushion

1шт.

20

155980A1

PISTON

cylinder

1шт.

21

155343A1

SEALING RING

piston

1шт.

Part of Seal Kit P/N 156001A1

1шт.

22

155321A1

RING

slide piston, inner

2шт.

Part of Seal Kit P/N 156001A1

1шт.

23

155338A1

BACK-UP RING

wear piston, outer

2шт.

Part of Seal Kit P/N 156001A1

1шт.

24

155732A1

SHIM

special

1шт.

Part of Seal Kit P/N 156001A1

1шт.

25

156229A1

NUT

piston retaining

1шт.

26

155981A1

BALL

Steel, Nut locking

1шт.

27

156228A1

SET SCREW

Special

1шт.

28

155539A1

PIPE ASSY.

gland end, right-hand boom cylinder

1шт.

28

155541A1

PIPE ASSY.

gland end, left-hand boom cylinder

1шт.

29

154543A1

O-RING

Hydraulic tube

2шт.

30

863-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

hex socket, 12 - 1.75 x 80 mm, class 12.9

8шт.

31

155538A1

HYD TUBE

cylinder tube end, right-hand boom cylinder

1шт.

31

155540A1

HYD TUBE

cylinder tube end, left-hand boom cylinder

1шт.

32

156391A1

MOUNTING CLIP

CLAMP plain half

1шт.

33

156392A1

GASKET

CLAMP band tube support half

1шт.

34

156227A1

WASHER

lock, special

2шт.

35

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

36

155709A1

COLLAR

tube double

2шт.

37

153623A1

SPRING WASHER

lock, special

1шт.

38

153911A1

BOLT

special

1шт.

39

155345A1

SEALING RING

piston rod to cushion bearing

1шт.

156001A1

SEAL KIT

seal, Includes: Ref. 11-15, 17, 18 and 21-24

1шт.
