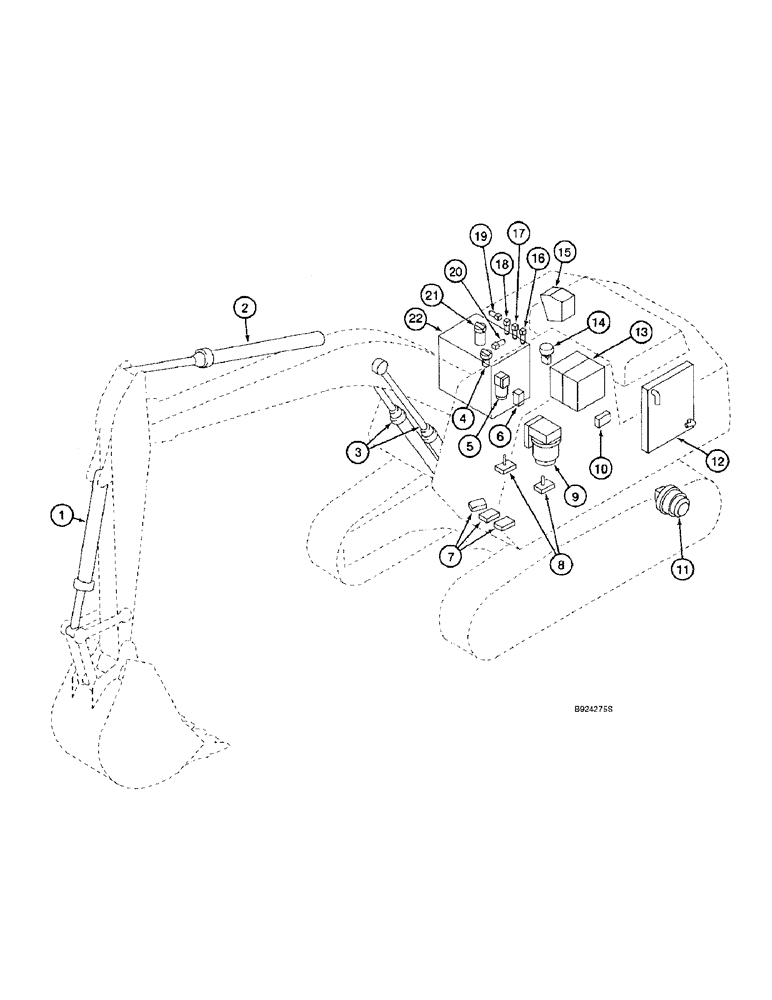

Запчасти Case 9050 (1-10) - PICTORIAL INDEX, BASIC HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Bucket Cylinder, Pages 8-87, 8-87B

1шт.

2

Arm Cylinder, Page 8-85

1шт.

3

Boom Cylinders, Page 8-83

1шт.

4

Pilot Line Filter, Page 8-33

1шт.

5

Free Swing Solenoid Valve, Page 8-43

1шт.

6

Boom Holding Valve, Page 8-49

1шт.

7

Foot Pedal Control Valves, Page 6-13

1шт.

8

Remte Control Valves, Page 8-49

1шт.

9

Swing Motor, Page 8-59, 8-61

1шт.

10

Cushion Valve, Page 8-47

1шт.

11

Track Drive Motor, Pages 6-9, 6-11

1шт.

12

Oil Cooler, Page 2-7

1шт.

13

Equipment Control Valve, Pages 8-65, 8-73

1шт.

14

Pilot Accumulator, Page 8-35

1шт.

15

Equipment Pump, Pages 8-15 - 8-23

1шт.

16

Two Speed Travel Control Valve, Pages 8-45

1шт.

17

Swing Brake Release Valve, Page 8-45

1шт.

18

Cushion Shutoff Solenoid Valve, Pagfe 8-45

1шт.

19

Control Shutoff Valve, Page 8-42

1шт.

20

Pilot Relief Valve, Page 8-33

1шт.

21

Pilot Return Filter, Page 8-33

1шт.

22

Hydraulic Reservoir, Page 8-3

1шт.
