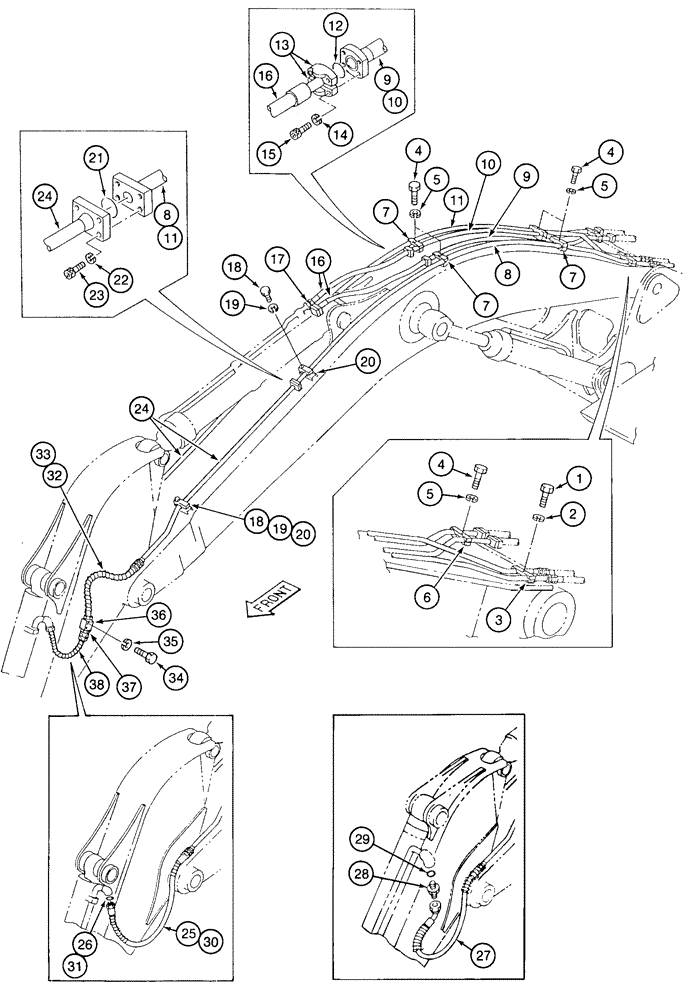

Запчасти Case 9050 (8-80) - ARM & BUCKET HYDRAULIC CIRCUITS, BASE OF BOOM TO BUCKET CYL - MODELS W/ 8 8", 10 7" & 13 3" ARMS (08) - HYDRAULICS

1

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

2

892-10016

LOCK WASHER,M16

lock, 16 mm

1шт.

3

151232A1

CLAMP

tube

1шт.

4

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

5шт.

5

892-10016

LOCK WASHER,M16

lock, 16 mm

5шт.

6

151380A1

CLAMP

tube

1шт.

7

152995A1

COLLAR

tube

4шт.

8

151755A1

HYD TUBE,34 mm OD, 3910.9, 1808 mm Length

to bucket cylinder, at base of boom, left-hand

1шт.

9

151752A1

HYD TUBE,42 mm OD, 2819.9, 295 mm Length

to arm cylinder at base of boom, left-hand

1шт.

10

151748A1

HYD TUBE,42.7 mm OD, 2819.9, 210 mm Length

to arm cylinder at base of boom, right-hand

1шт.

11

151760A1

HYD TUBE

to bucket cylinder, at base of boom, right-hand

1шт.

12

153626A1

O-RING

port

2шт.

13

150124A1

FLANGE

split hose mounting

4шт.

14

150336A1

SPRING WASHER

lock, 14 mm

8шт.

15

863-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

16

151433A1

HOSE ASSY.,31.8mm ID x 1150mm L

At arm cylinder, Includes Ref. 17

2шт.

17

150583A1

O-RING

hose

1шт.

18

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

19

892-10016

LOCK WASHER,M16

lock, 16 mm

4шт.

20

150777A1

COLLAR

tube

4шт.

21

154548A1

O-RING

tube connection

2шт.

22

112310A1

WASHER

lock, special

8шт.

23

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

24

151256A1

HYD TUBE,26 mm ID, 34 mm OD

hydraulic to bucket cylinder, at top of arm

2шт.

25

153791A1

HOSE ASSY.

57 inch (1450 mm) long bucket cylinder, at top of arm, if used, models w/8' 8" arm only, Includes: Ref. 26

2шт.

26

154523A1

O-RING

hose, models w/8' 8" arm only

1шт.

27

158056A1

HYDRAULIC HOSE,25.40 mm ID x 2000.00 mm

Bucket Cylinder, at Top of Arm, If Used, Models with 8' 8" Arm Only

1шт.

28

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, used with 158056A1 hose, if used, models w/8' 8" arm only, Includes: Ref. 29

1шт.

29

154523A1

O-RING

adapter, models w/8' 8" arm only

1шт.

30

151505A1

HOSE ASSY.,25.40 mm ID x 1850.00 mm

At top of arm, If used, Models w/10' 7" arm only, Includes Ref. 31

2шт.

31

154523A1

O-RING

hose, models w/10' 7" arm only

1шт.

32

151505A1

HOSE ASSY.,25.40 mm ID x 1850.00 mm

At top of arm, Models w/10' 7" arm only, Includes Ref. 33

2шт.

33

154523A1

O-RING

to manifold, models w/10' 7" arm only

1шт.

34

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

Models w/10' 7" arm only

4шт.

35

892-10012

LOCK WASHER,M12

Models w/10' 7" arm only

4шт.

36

153830A1

MANIFOLD

hydraulic bucket cylinder, at top of arm, models w/10' 7" arm only

2шт.

37

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight, to manifold, models w/10' 7" arm only, Includes: Ref. 37A

2шт.

37a

154523A1

O-RING

adapter, not shown, models w/10' 7" arm only

1шт.

38

153791A1

HOSE ASSY.

57 inch (1450 mm) long manifold to bucket cylinder, models w/10' 7" arm only, Includes: Ref. 39

2шт.

39

154523A1

O-RING

hose, not shown, models w/10' 7" arm only

1шт.
