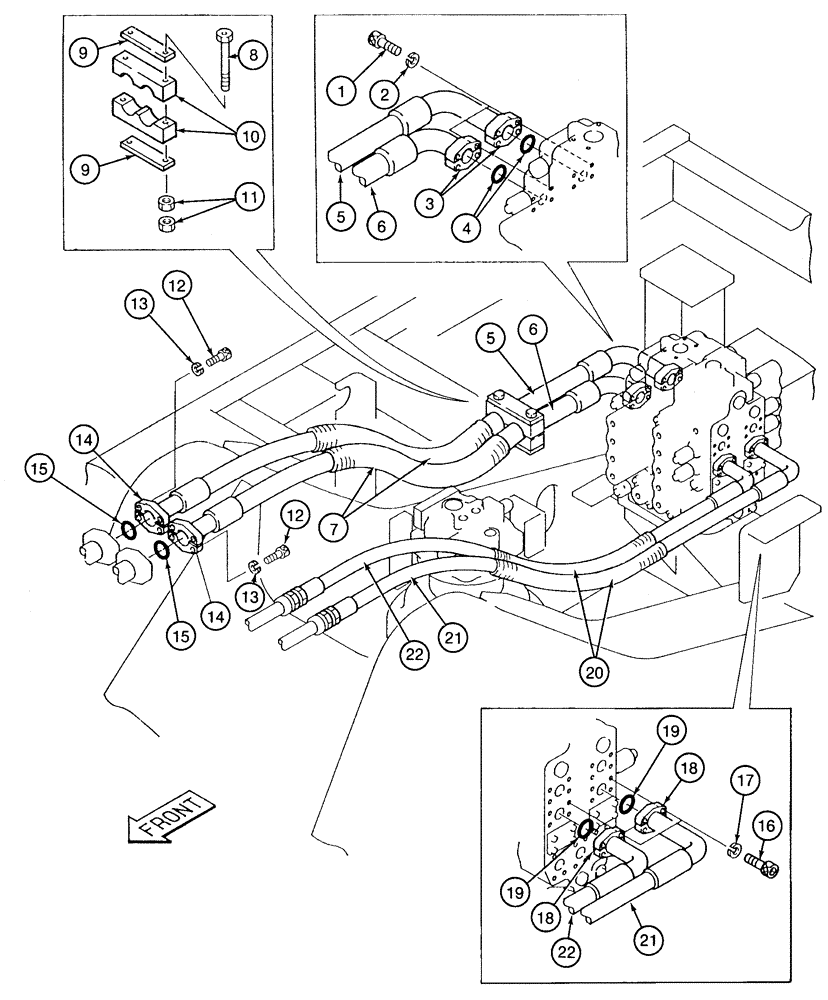

Запчасти Case 9050 (8-78) - ARM AND BUCKET HYDRAULIC CIRCUITS, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

8шт.

2

112312A1

LOCK WASHER

lock, special, 12 mm

8шт.

3

150561A1

FLANGE

split arm hoses at control valve

4шт.

4

150830A1

O-RING

arm hose to control valve, right-hand side

2шт.

5

153157A1

HOSE ASSY.

70 inch (1800 mm) long arm, right-hand side of control valve, rear port

1шт.

6

153159A1

HOSE ASSY.

67 inch (1700 mm) long arm, right-hand side of control valve, front port

1шт.

7

151046A1

GUARD

hose

2шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

9

153220A1

PLATE

support hose clamp

2шт.

10

153219A1

HOSE CLAMP

2шт.

11

829-1310

NUT,M10, Cl 10

Hex

4шт.

12

152982A1

BOLT (MACHINE)

hex socket, special

8шт.

13

150336A1

SPRING WASHER

lock, special, 14 mm

8шт.

14

150124A1

FLANGE

split arm hoses at base of boom

4шт.

15

153626A1

O-RING

arm hose flanged connection at base of boom

2шт.

16

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

17

112310A1

WASHER

lock, special

8шт.

18

153459A1

FLANGE

split bucket hoses at control valve

4шт.

19

162246A1

O-RING

bucket hose to control valve

2шт.

20

152478A1

GUARD

hose bucket

2шт.

21

153218A2

HOSE 69 inch (1750 mm) long bucket, left-hand side of control valve, rear port

1шт.

22

153217A2

HOSE 65 inch (1650 mm) long bucket, left-hand side of control valve, front port

1шт.
