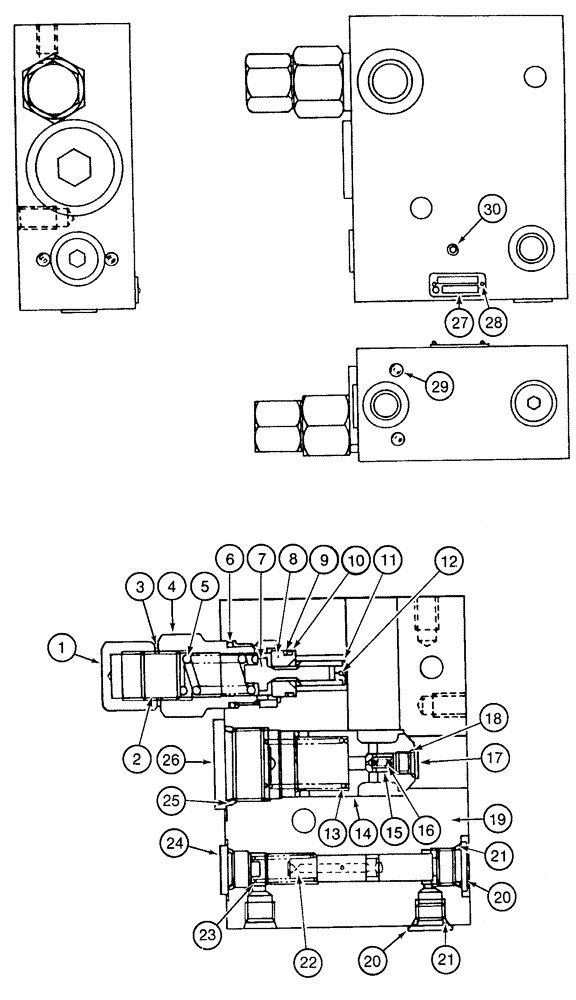

Запчасти Case 9050 (8-76) - BOOM HYDRAULIC CIRCUIT, 153296A1 HOLDING VALVE (08) - HYDRAULICS

153296A1

VALVE

holding, Includes: Ref. 1 - 30

1шт.

155849A1

VALVE

relief, Includes: Ref. 1 - 30

1шт.

1

156205A1

NUT

valve, Includes: Ref. 1 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

FITTING adjuster, spring tension

1шт.

3

155693A1

GASKET

cap to valve body

1шт.

4

NSS

NOT SOLD SEPARAT

BODY relief

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

6

155195A1

O-RING

seal relief body, outer

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

9

155227A1

BACK-UP RING

relief body seal, inner

1шт.

10

155226A1

O-RING

relief body, inner

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG orifice

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER relief

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING plunger

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER boom hold valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET relief

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

17

155510A1

PLUG

port

1шт.

18

154455A1

O-RING

plug

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING boom hold valve

1шт.

20

155515A1

PLUG

port

2шт.

21

154475A1

O-RING

plug

3шт.

22

NSS

NOT SOLD SEPARAT

SPOOL boom hold valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING valve spool

1шт.

24

155514A1

PLUG

port

1шт.

25

154523A1

O-RING

plug

1шт.

26

155509A1

PLUG

port boom hold valve

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

28

NSS

NOT SOLD SEPARAT

RIVET name plate

2шт.

29

NSS

NOT SOLD SEPARAT

EXPANDER valve

4шт.

30

NSS

NOT SOLD SEPARAT

PLUG port

2шт.
