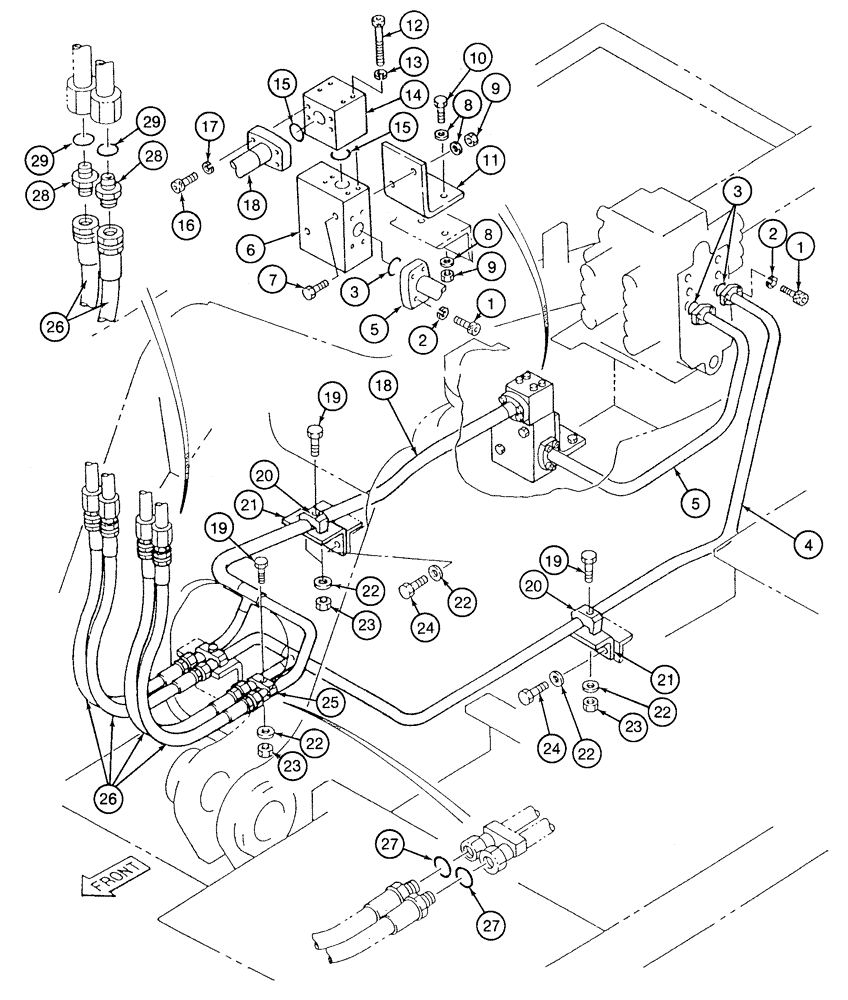

Запчасти Case 9050 (8-74) - BOOM HYDRAULIC CIRCUIT, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

12шт.

2

112309A1

LOCK WASHER

lock, special

12шт.

3

154548A1

O-RING

tube

3шт.

4

153349A1

TUBE

flanged at control valve boom section, rear port

1шт.

5

153347A1

TUBE

flanged at control valve boom section, front port, to boom hold valve

1шт.

6

153296A1

VALVE

holding boom, parts list Figure 8-76

1шт.

7

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

8

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

6шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

11

153298A1

BRACKET

valve mounting

1шт.

12

862-10080

HEX SOC SCREW,M10 x 80mm, Cl 12.9

hex socket, 10 - 1.5 x 80 mm, class 12.9

4шт.

13

112309A1

LOCK WASHER

lock, special

4шт.

14

153519A1

ELBOW

MANIFOLD hydraulic for flanged fittings

1шт.

15

154548A1

O-RING

manifold

2шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

17

112309A1

LOCK WASHER

lock, special

4шт.

18

153348A1

HYD TUBE

flanged at boom hold valve to boom cylinder

1шт.

19

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

20

152974A1

COLLAR

tube

2шт.

21

153022A1

BRACKET

tube support

2шт.

22

150811A1

WASHER

flat, special, 12 mm

8шт.

23

829-1412

NUT,M12, Cl 10.9

4шт.

24

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

25

152997A1

COLLAR

tube

2шт.

26

153162A1

HOSE ASSY.

43-5/16 inch (1100 mm) long at base of boom, Includes: Ref. 27

4шт.

27

154523A1

O-RING

hose

1шт.

28

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight hydraulic, Includes: Ref. 29

4шт.

29

154523A1

O-RING

adapter

1шт.
