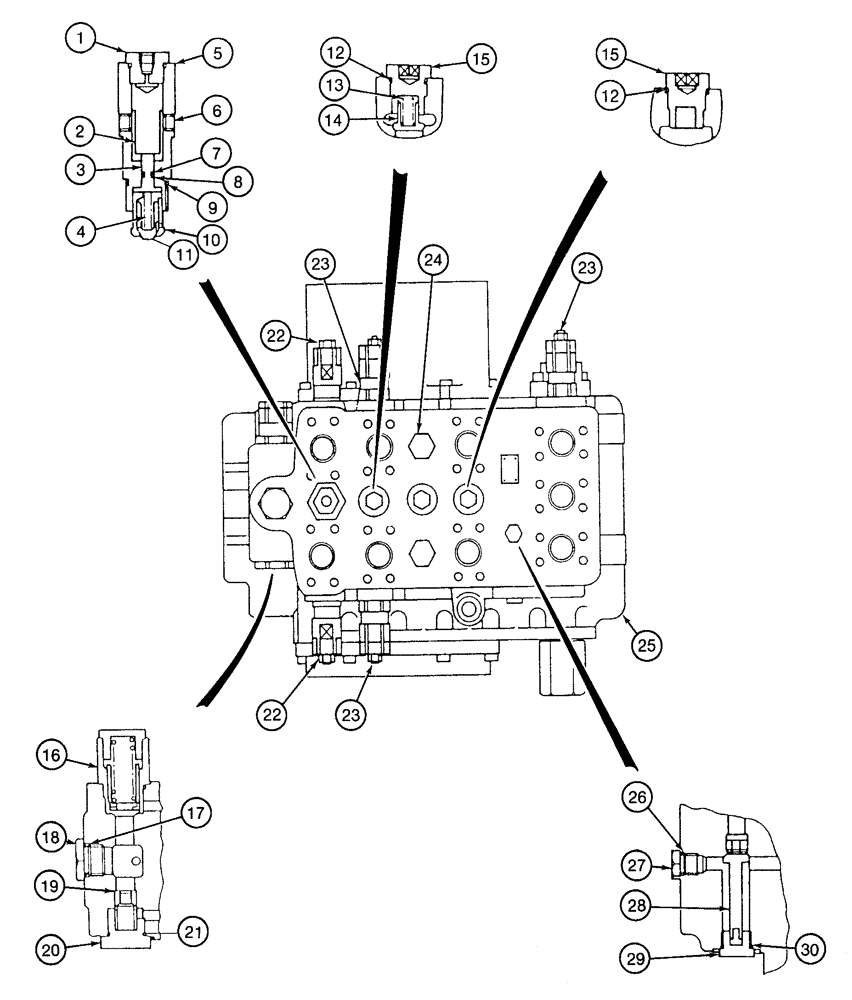

Запчасти Case 9050 (8-72) - 153350A1 CONTROL VALVE, PLUGS, CHECK AND RELIEF VALVES, RIGHT-HAND SIDE (08) - HYDRAULICS

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72, Includes: Ref. 1 - 30

1шт.

155758A1

VALVE BLOCK (USED)

SECTION, control right-hand side, parts list Figures 8-69A - 8-72, Includes: Ref. 1 - 30

1шт.

156795A1

VALVE, CHECK

swing priority, Includes: Ref. 1 - 11

1шт.

1

155458A1

PLUG

relief valve, special

1шт.

2

155929A1

PISTON

PLUNGER check valve

1шт.

3

155928A1

PISTON

SHUTTLE check valve

1шт.

4

156051A1

SPRING

relief

1шт.

5

155457A1

PLUG

BODY check valve

1шт.

6

151022A1

PLUG

hex socket, special

6шт.

7

153937A1

BACK-UP RING

seal

1шт.

8

154442A1

O-RING

seal

1шт.

9

155224A1

O-RING

seal

1шт.

10

155922A1

VALVE POPPET

GUIDE spring

1шт.

11

155921A1

VALVE POPPET

relief

1шт.

12

155224A1

O-RING

plug

3шт.

13

156055A1

SPRING

poppet

2шт.

14

155903A1

VALVE POPPET

relief

2шт.

15

155459A1

PLUG

special

3шт.

16

155746A1

VALVE, PRESSURE RELI

EF pump destroke

1шт.

17

154503A1

O-RING

port plug

1шт.

18

155455A1

PLUG

port

1шт.

19

155573A1

SLEEVE

valve

1шт.

20

155445A1

PLUG

special

1шт.

21

155224A1

O-RING

plug

1шт.

22

155745A1

VALVE PRESSURE RELIE

parts list Figure 8-69A

2шт.

23

155743A1

VALVE, PRESSURE RELI

EF

3шт.

24

155446A1

PLUG

special

2шт.

25

NSS

NOT SOLD SEPARAT

BODY valve section

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

27

153883A1

PLUG

port

1шт.

28

155923A1

VALVE POPPET

1шт.

29

155436A1

PLUG

shuttle retaining

1шт.

30

155222A1

O-RING

plug

1шт.
