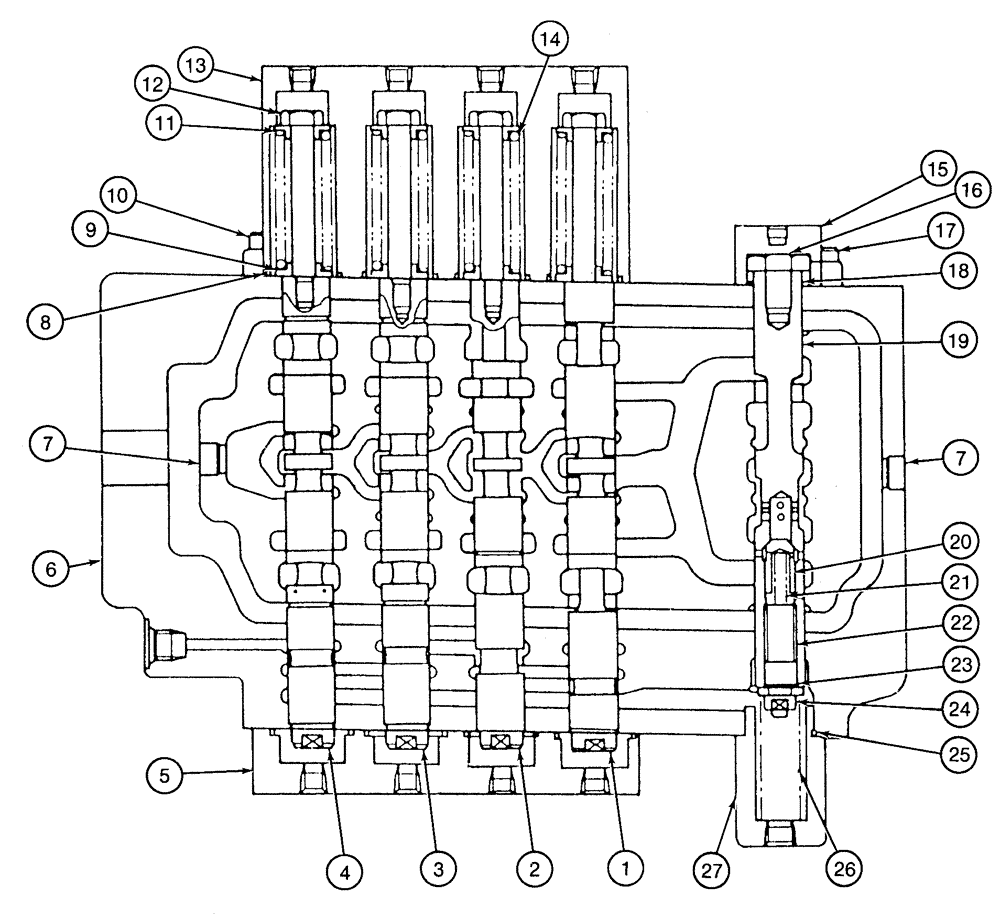

Запчасти Case 9050 (8-70) - 153350A1 CONTROL VALVE, SPOOLS AND RELATED PARTS, RIGHT-HAND SIDE (08) - HYDRAULICS

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72, Includes: Ref. 1 - 27

1шт.

155758A1

VALVE BLOCK (USED)

SECTION, control right-hand side, parts list Figures 8-69A - 8-72, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL travel

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL boom, right-hand side

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL swing

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL arm, right-hand side

1шт.

5

156282A1

CAP

spool end

1шт.

6

NSS

NOT SOLD SEPARAT

BODY valve, right-hand side

1шт.

7

151033A1

PLUG

hex socket, special

2шт.

8

154567A1

O-RING

seal

8шт.

9

156019A1

SPRING SEAT

8шт.

10

156163A1

BOLT (MACHINE),Hex Skt

hex socket, special

10шт.

11

156052A1

SPRING

spool return

3шт.

12

156243A1

CAP

RETAINER spring

4шт.

13

156281A1

CAP

spring end spool

1шт.

14

156053A1

SPRING

spool return boom

1шт.

15

156252A1

CAP

spool end

1шт.

16

155442A1

PLUG

spool end

1шт.

17

156163A1

BOLT (MACHINE),Hex Skt

hex socket, special

4шт.

18

154567A1

O-RING

seal

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL travel, right-hand side

1шт.

20

155904A1

VALVE POPPET

spool

1шт.

21

156015A1

SPRING

poppet

1шт.

22

155574A1

SPACER

travel spool

1шт.

23

155221A1

O-RING

plug

1шт.

24

155443A1

PLUG

spool end

1шт.

25

153860A1

O-RING

seal

1шт.

26

156054A1

SPRING

spool return

1шт.

27

156248A1

CAP

RETAINER spring

1шт.
