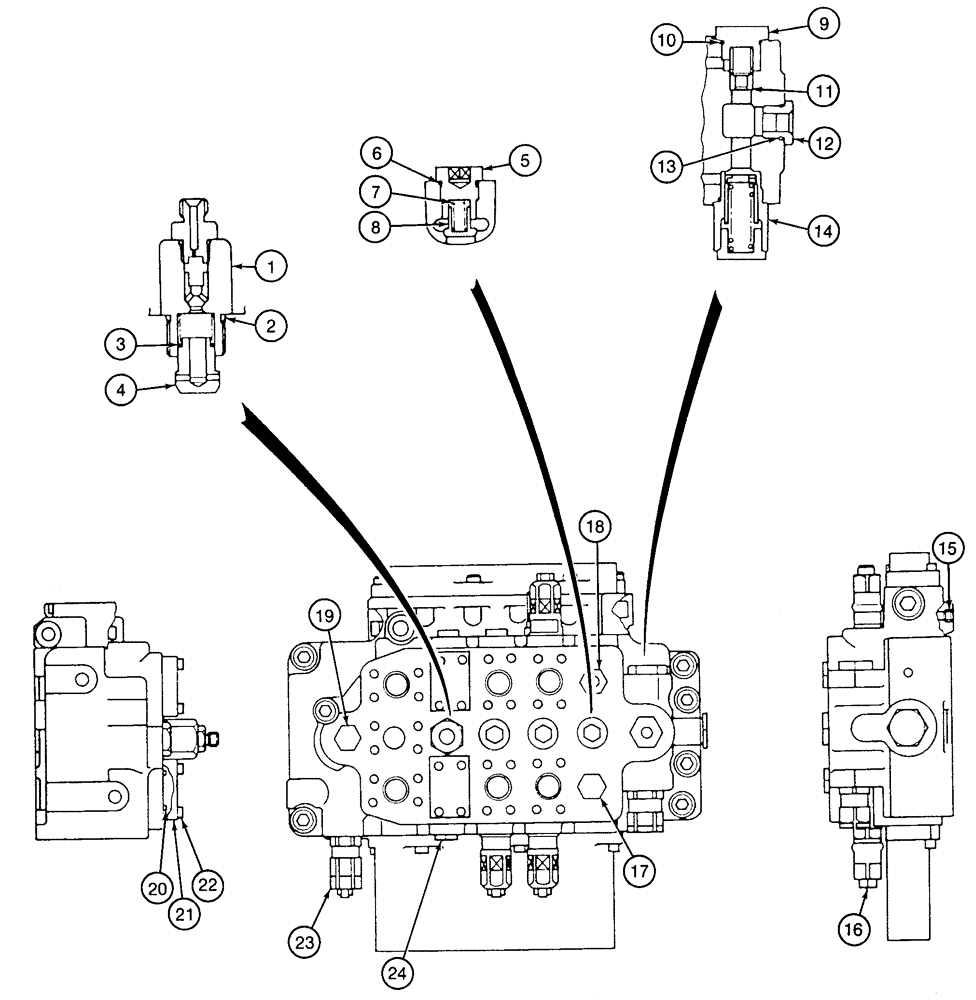

Запчасти Case 9050 (8-68) - 153350A1 CONTROL VALVE, PLUGS, CHECK AND RELIEF VALVES, LEFT-HAND SIDE (08) - HYDRAULICS

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72, Includes: Ref. 1 - 28

1шт.

155757A1

VALVE BLOCK (USED)

SECTION, control left-hand side, parts list Figures 8-66 & 8-69A, Includes: Ref. 1 - 28

1шт.

1

155759A1

VALVE, CHECK

1шт.

2

155224A1

O-RING

check valve

1шт.

3

156056A1

SPRING

poppet

1шт.

4

155924A1

VALVE POPPET

relief

1шт.

5

155459A1

PLUG

special

3шт.

6

155224A1

O-RING

plug

3шт.

7

156055A1

SPRING

poppet

3шт.

8

155903A1

VALVE POPPET

relief

3шт.

9

155445A1

PLUG

special

1шт.

10

155224A1

O-RING

plug

1шт.

11

155573A1

SLEEVE

valve

1шт.

12

155460A1

PLUG

port

1шт.

13

154503A1

O-RING

plug

1шт.

14

155746A1

VALVE, PRESSURE RELI

EF

1шт.

15

151022A1

PLUG

hex socket, special

1шт.

16

155745A1

VALVE PRESSURE RELIE

parts list Figure 8-69B

3шт.

17

155446A1

PLUG

special

1шт.

18

155466A1

PLUG

special

1шт.

19

155449A1

PLUG

port

1шт.

20

155211A1

O-RING

plate

2шт.

21

156278A1

COVER

auxiliary port

2шт.

22

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

8шт.

23

155743A1

VALVE, PRESSURE RELI

EF main

1шт.

24

155438A1

PLUG

special, Includes: Ref. 25 - 28

3шт.

25

155223A1

O-RING

special, not shown

1шт.

26

160368A1

BACK-UP RING

not shown

1шт.

27

160369A1

PLUG

special, not shown

1шт.

28

160370A1

O-RING

special, not shown

1шт.
