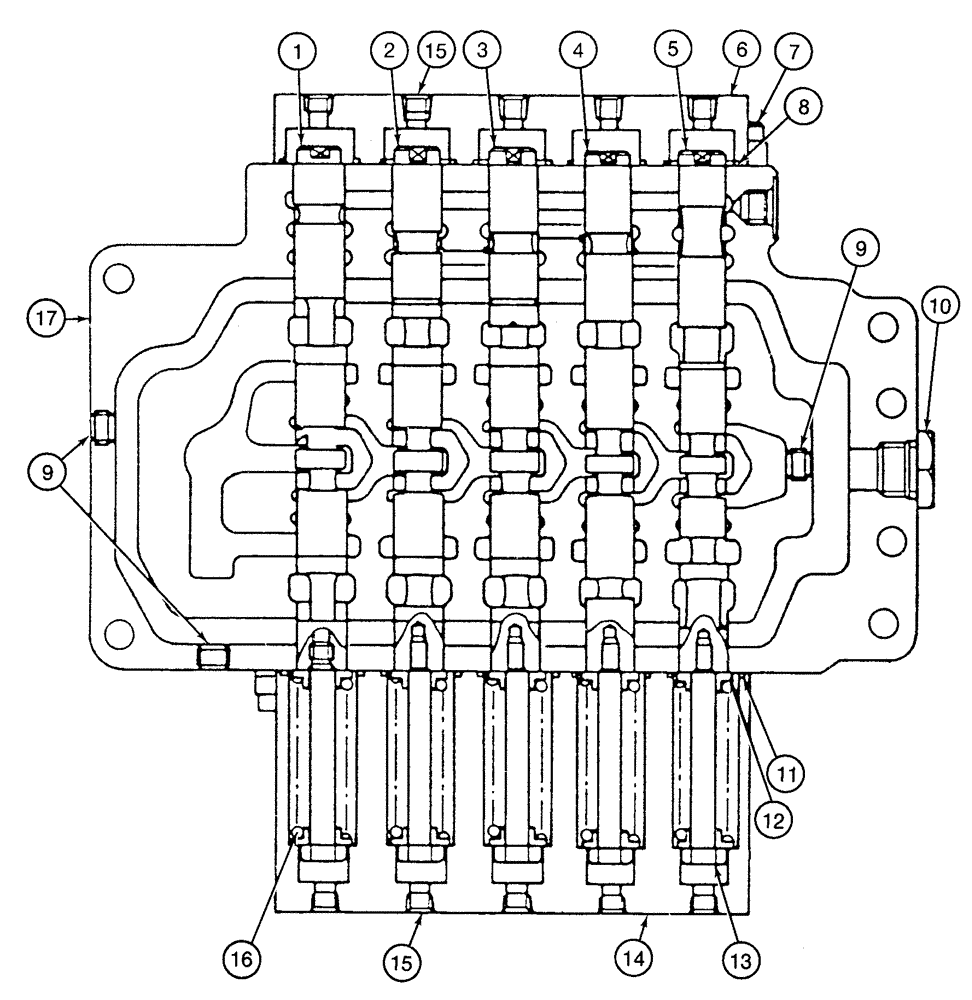

Запчасти Case 9050 (8-66) - 153350A1 CONTROL VALVE, SPOOLS AND RELATED PARTS, LEFT-HAND SIDE (08) - HYDRAULICS

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72, Includes: Ref. 1 - 17

1шт.

155757A1

VALVE BLOCK (USED)

SECTION, control left-hand side, parts list Figures 8-66 & 8-69A, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL travel, left-hand side

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL auxiliary

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL boom, left-hand side

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL bucket

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL arm, left-hand side

1шт.

6

156245A1

CAP

spool end

1шт.

7

156163A1

BOLT (MACHINE),Hex Skt

hex socket

12шт.

8

154567A1

O-RING

seal

5шт.

9

151033A1

PLUG

hex socket, special

3шт.

10

155461A1

PLUG

port

1шт.

11

154567A1

O-RING

seal

5шт.

12

156019A1

SPRING SEAT

10шт.

13

156243A1

CAP

RETAINER spring

5шт.

14

156244A1

CAP

spool spring end

1шт.

15

151026A1

PLUG

port

2шт.

16

156052A1

SPRING

spool return

5шт.

17

NSS

NOT SOLD SEPARAT

BODY valve section, left-hand side

1шт.
