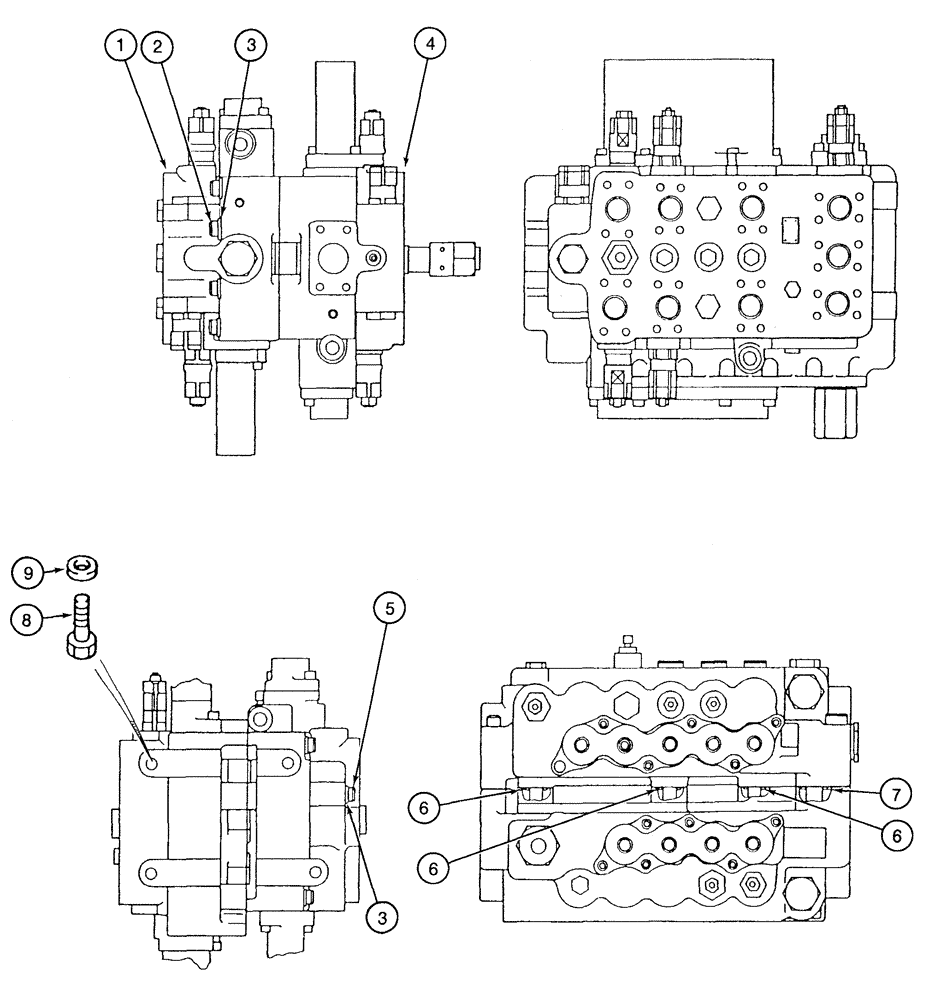

Запчасти Case 9050 (8-64) - 153350A1 CONTROL VALVE (08) - HYDRAULICS

153350A1

VALVE, CONTROL

hydraulic, parts list Figure 8-64 - 8-72, Includes: Ref. 1 - 7

1шт.

1

155757A1

VALVE BLOCK (USED)

SECTION, control left-hand side, parts list Figure 8-66 - 8-69A

1шт.

2

156169A1

BOLT

hex socket, special

6шт.

3

156170A1

WASHER

special

7шт.

4

155758A1

VALVE BLOCK (USED)

SECTION ASSY. control right-hand side, parts list Figures 8-69A - 8-72

1шт.

5

863-16150

HEX SOC SCREW,M16 x 150mm, Cl 12.9

hex socket, 16 - 2.0 x 150 mm, class 12.9

1шт.

6

155172A1

O-RING

between sections

3шт.

7

154515A1

O-RING

between sections

2шт.

8

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

9

153357A1

SPACER

valve mounting

4шт.
