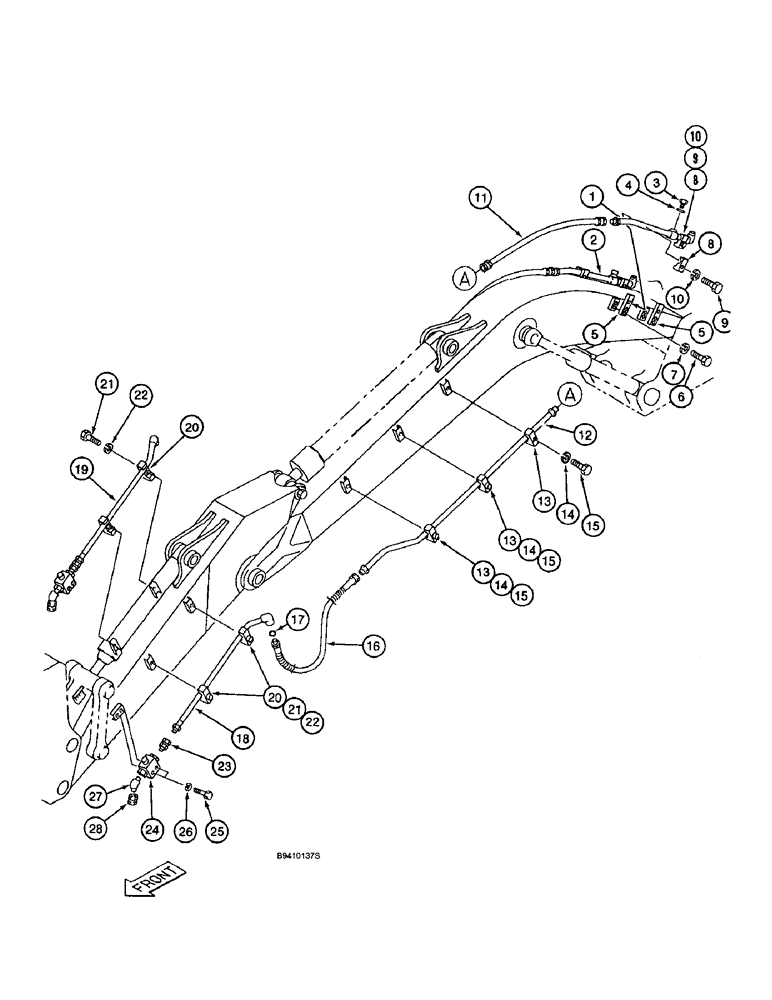

Запчасти Case 9045B (8-072) - AUXILIARY EQUIPMENT OPTION, SUPPLY AND CYLINDER LINES, FOR 3.4 METER ARM (08) - HYDRAULICS

1

162917A1

TUBE,26 mm ID, 34 mm OD

ASSEMBLY - boom, left-hand, (contains no serviceable parts)

1шт.

2

162918A1

TUBE,26 mm ID, 34 mm OD

ASSEMBLY - boom, right-hand, (contains no serviceable parts)

1шт.

3

152924A1

PLUG

- port, Includes: Ref. 4

2шт.

4

154503A1

O-RING

- plug

2шт.

5

162260A1

BAR

BRACKET - flat

4шт.

6

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

7

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

8шт.

8

150777A1

COLLAR

CLAMP - tube

4шт.

9

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.

10

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

11

162255A1

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

25.40 mm ID x 1000.00 mm

2шт.

12

162919A1

TUBE,26 mm ID, 34 mm OD

- on side of boom

2шт.

13

150777A1

COLLAR

CLAMP - tube

6шт.

14

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

6шт.

16

163543A1

HYDRAULIC HOSE,25.40 mm ID x 2000.00 mm

- Includes Ref. 17 25.40 mm ID x 2000.00 mm

2шт.

17

154523A1

O-RING

- adapter

1шт.

18

163494A1

TUBE,26 mm ID, 34 mm OD

ASSEMBLY - arm, left-hand, (contains no serviceable parts)

1шт.

19

162920A1

TUBE,26 mm ID, 34 mm OD

ASSEMBLY - arm, right-hand, (contains no serviceable parts)

1шт.

20

150777A1

COLLAR

CLAMP - tube

4шт.

21

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

22

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

23

153635A1

ADAPTER

- straight, special

2шт.

24

153691A1

VALVE

- stop

2шт.

25

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

27

150238A1

ADAPTER

ELBOW - 45 degree, 1 BSPT male pipe x 1 inch BSPP flare (JIS G-1), shipped on machines with auxiliary equipment option

2шт.

27

284601A1

ELBOW

- 45 degree, 1 BSPT male pipe x 1-5/16-12 inch flare (SAE-16), service option

2шт.

28

153684A1

PLUG

CAP - hex, 1 inch BSPP flare (JIS G-1), used with 150238A1 elbow only

2шт.

28

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch, used with 284601A1 elbow only

2шт.
