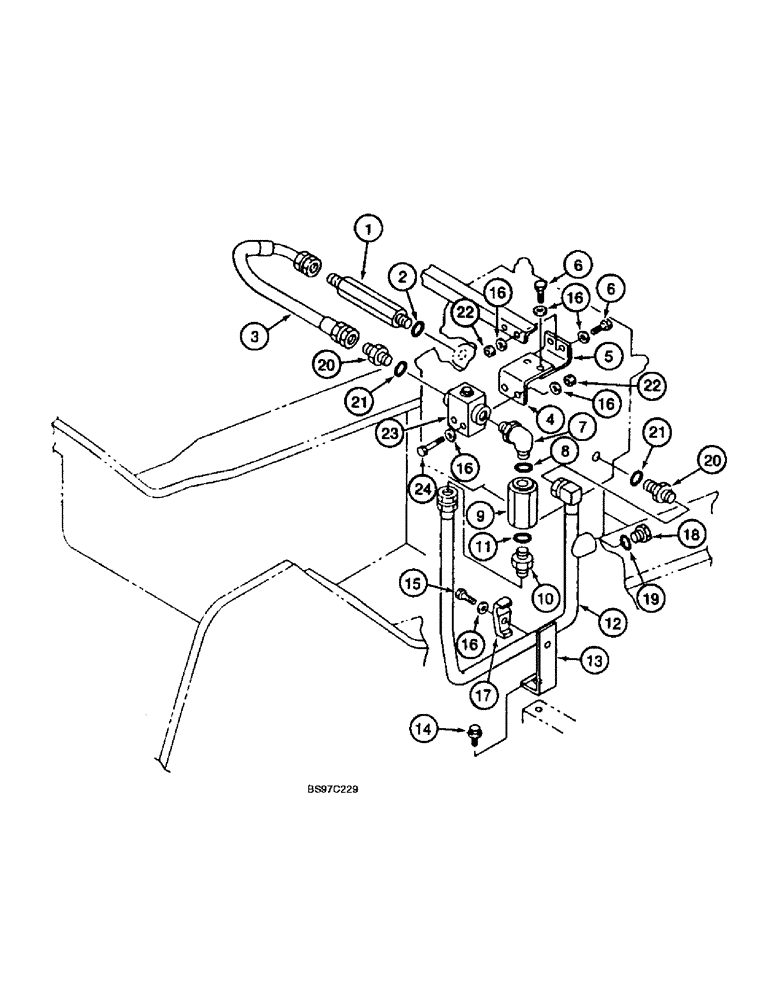

Запчасти Case 9045B (8-070) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, CHECK AND SELECTOR VALVE LINES (08) - HYDRAULICS

1

165337A1

STUD

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

- adapter

1шт.

3

163461A1

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

19.00 mm ID x 720.00 mm

1шт.

4

162205A1

BRACKET

- 90 degree angle, at selector valve

1шт.

5

162206A1

BRACKET

BACKET - 90 degree angle

1шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

7

165348A1

ELBOW

- 90 degree, Includes: Ref. 8

1шт.

8

154503A1

O-RING

- elbow

1шт.

9

163460A1

VALVE

- check

1шт.

10

159387A1

ADAPTER

- straight, special, Includes: Ref. 11

1шт.

11

154523A1

O-RING

- adapter

1шт.

12

163459A1

HYD TUBE,20.8 mm ID, 27.2 mm OD

TUBE - hydraulic, selector valve to control valve

1шт.

13

162210A1

BRACKET

- 90 degree, tube support

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

15

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

16

150811A1

WASHER

- flat, special, 12 mm

11шт.

17

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

18

152924A1

PLUG

- tube port, Includes: Ref. 19

1шт.

19

154503A1

O-RING

- plug

1шт.

20

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 21

2шт.

21

154503A1

O-RING

- adapter

1шт.

22

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

23

159485A1

VALVE

- selector

1шт.

24

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

2шт.
