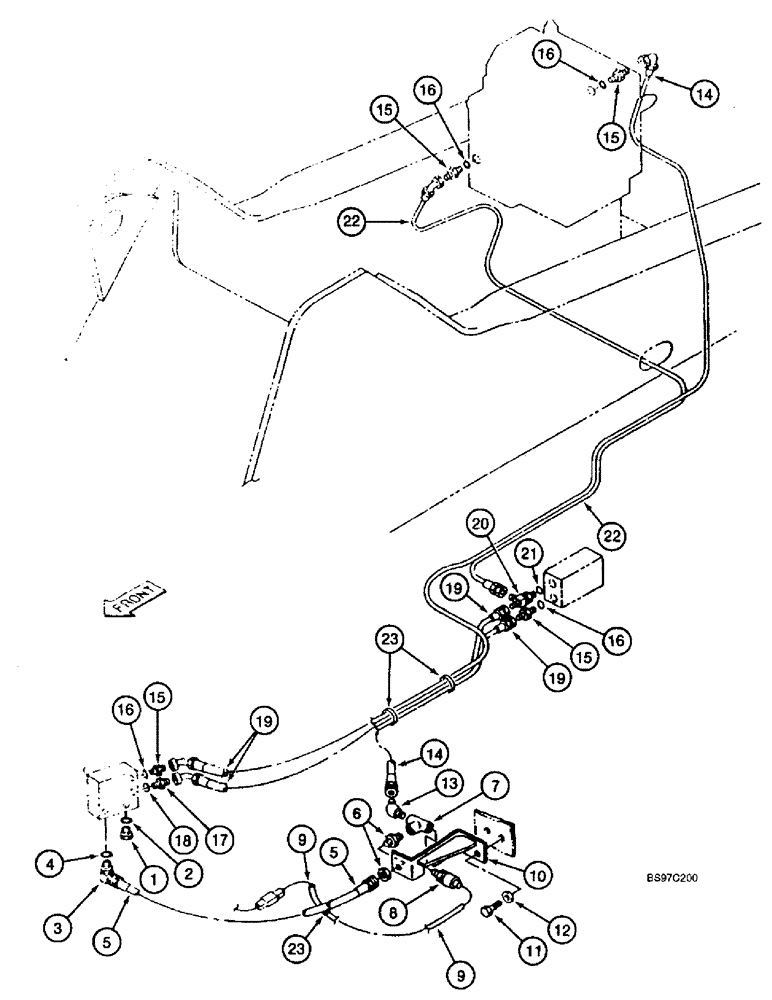

Запчасти Case 9045B (8-060) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

159002A1

PLUG

- port, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

5

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm

1шт.

6

162640A1

ADAPTER

- special

1шт.

7

152135A1

TEE

- hydraulic

1шт.

8

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

9

159636A1

HARNESS

- wiring

1шт.

10

162638A1

BRACKET

- mounting

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

10шт.

13

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

14

165160A1

HYDRAULIC HOSE

3200 mm, Tee at Pressure Switch to Control Valve

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 16

4шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

17

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long

2шт.

20

159497A1

TEE

- special, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

22

159433A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long

1шт.

23

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.
