Запчасти Case 9045B (8-044) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS

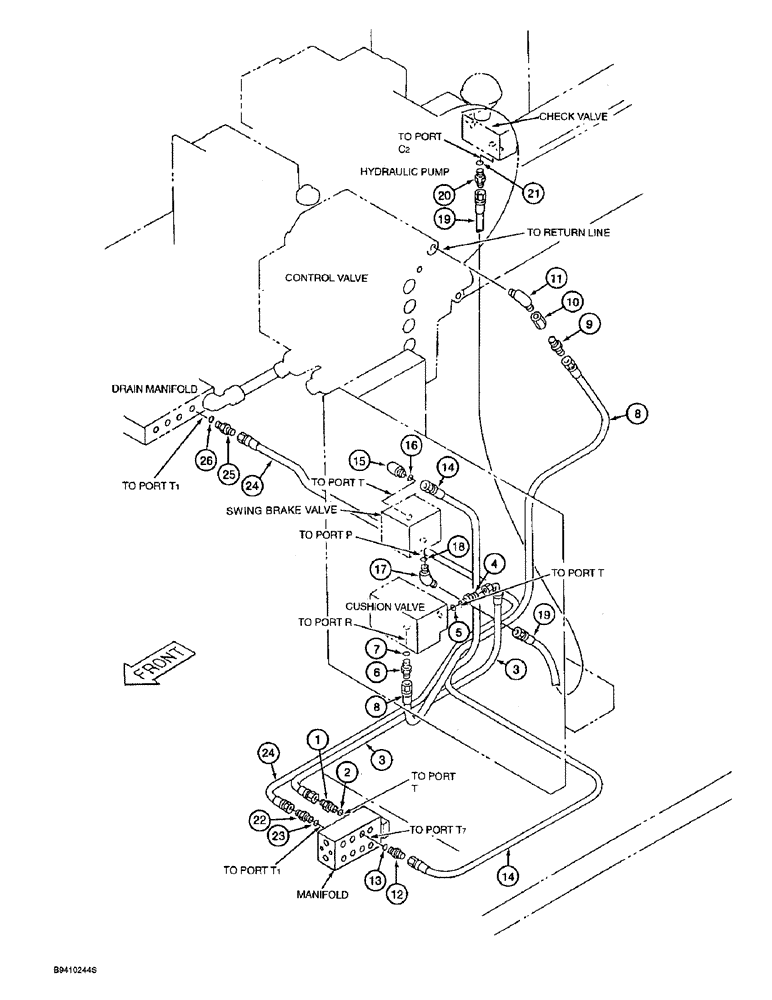

Схема запчастей Case 9045B - (8-044) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS
21
18
8
10
17
24
3
2
16
6
9
22
14
23
19
1
4
12
19
13
20
26
8
24
11
25
7
15
14
3
5

Артикул

Название

Примечание

Количество

1

153378A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

159019A1

HOSE ASSY.

HOSE - 900 mm (35-7/8 inch) long (pilot line between manifold port T and cushion valve port T)

1шт.

4

153378A1

ADAPTER

- straight, Includes: Ref.

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

153378A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

153483A1

HOSE ASSY.

HOSE - 1450 mm (57 inch) long ( pilot line from cushion valve port R to return line)

1шт.

9

153603A1

ADAPTER

- straight

1шт.

10

151552A1

FILTER

- hydraulic, in-line

1шт.

11

159022A1

ELBOW

- 90 degree, special

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

152604A1

HOSE,63.00 mm ID x 1600.00 mm

(Pilot line between manifold port T7 and swing brake release valve port T) 63.00 mm ID x 1600.00 mm

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

17

150933A1

ELBOW

- 45 degree, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

19

151904A1

HOSE,6.3mm ID x 3100mm L

(Pilot line between swing brake release valve port P and check valve port C2) 63.00 mm ID x 3100.00 mm

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 23

1шт.

23

154475A1

O-RING

- adapter

1шт.

24

157967A1

HOSE

- 2200 mm (86-5/8 inch) long (line from manifold port T1 to drain manifold port T1)

1шт.

25

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 26

1шт.

26

154475A1

O-RING

- adapter

1шт.

Выбрано товаров: 26
