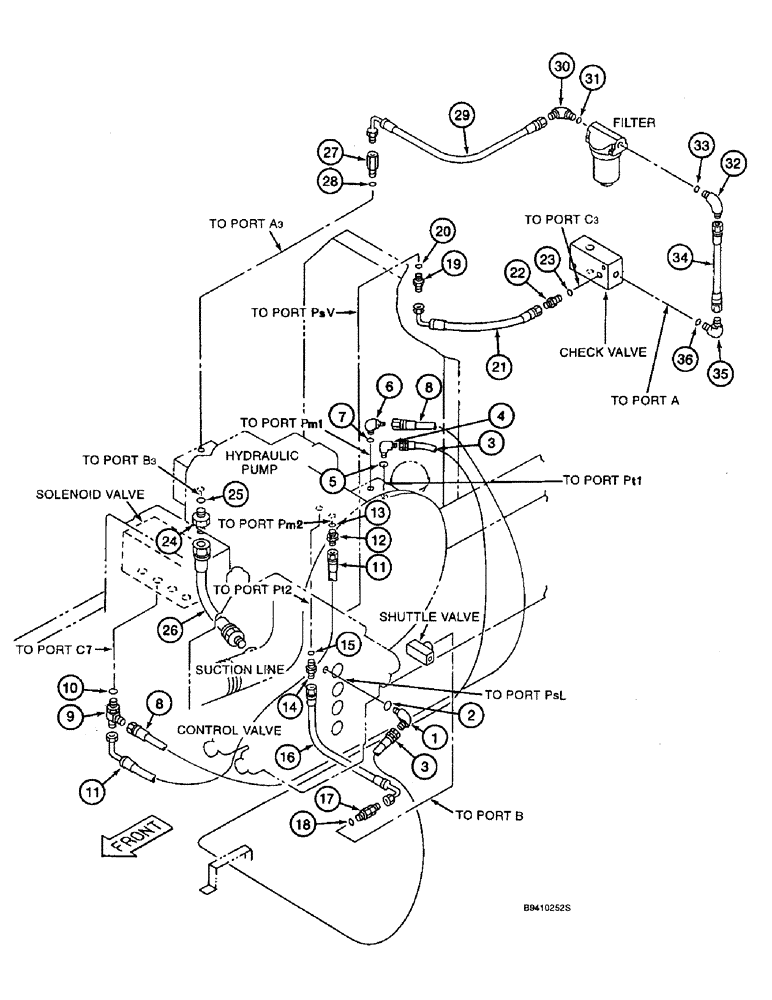

Запчасти Case 9045B (8-038) - HYDRAULIC PUMP AND FILTER PILOT LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

151904A1

HOSE,6.3mm ID x 3100mm L

(Hydraulic pump port PsL to control valve port Pt1) 63.00 mm ID x 3100.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

153483A1

HOSE ASSY.

HOSE - 1450 mm (57 inch) long (hydraulic pump port Pm1 to tee in control valve port C7)

1шт.

9

159497A1

TEE

- special (installed in control valve port C7), Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

11

164791A1

HOSE ASSY.

HOSE - 1200 mm (47-1/4 inch) long (hydraulic pump port Pm2 to tee in control valve port C7)

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159349A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long (hydraulic pump port Pt2 to shuttle valve)

1шт.

17

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

159355A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long (hydraulic pump port PsV to check valve port C3)

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

159000A1

HYDRAULIC HOSE

HOSE - 520 mm (20-7/16 inch) long (hydraulic pump port B3 to suction line)

1шт.

27

159361A1

ADAPTER

- straight, special, Includes: Ref. 28

1шт.

28

154487A1

O-RING

- adapter

1шт.

29

162912A1

HYDRAULIC HOSE,12.70 mm ID x 620.00 mm

(Hydraulic pump port A3 to filter) 12.70 mm ID x 620.00 mm

1шт.

30

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 31

1шт.

31

154487A1

O-RING

- elbow

1шт.

32

157935A1

ELBOW

- 90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 33

1шт.

33

154487A1

O-RING

- elbow

1шт.

34

159001A1

HOSE

- 300 mm (11-3/16 inch) long (filter to check valve port A)

1шт.

35

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 36

1шт.

36

154475A1

O-RING

- elbow

1шт.
