(8-034) - TRAVEL CONTROL LINES, SINGLE PEDAL TRAVEL

Запчасти Case 9045B (8-034) - TRAVEL CONTROL LINES, SINGLE PEDAL TRAVEL (08) - HYDRAULICS

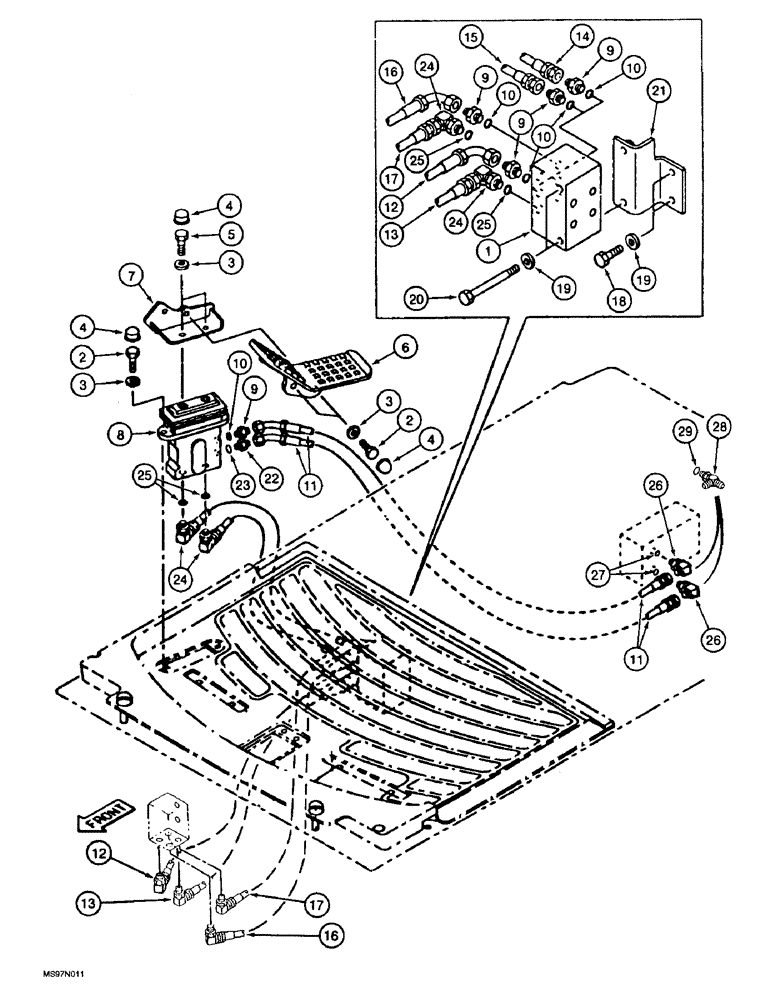

Схема запчастей Case 9045B - (8-034) - TRAVEL CONTROL LINES, SINGLE PEDAL TRAVEL (08) - HYDRAULICS
2
17
18
17
3
10
5
7
26
9
3
4
26
22
25
12
14
9
3
27
4
25
11
2
16
24
19
10
4
9
13
6
20
24
8
10
1
24
29
9
23
21
10
16
15
19
13
28
11
25
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ17130

VALVE SECTION

VALVE ASSEMBLY - shuttle, parts list Figure 8-116; Replaces 160355A1

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150604A1

WASHER

- special

6шт.

4

159488A1

CAP

- special

6шт.

5

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

6

159030A1

PEDAL

- foot control

1шт.

7

161843A1

BRACKET

- pedal mounting

1шт.

8

159257A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, parts list Figure 8-90

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

5шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long

2шт.

12

159349A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long

1шт.

13

151862A1

HOSE,63.00 mm ID x 400.00 mm

63.00 mm ID x 400.00 mm

1шт.

14

152775A1

HOSE ASSY.

HOSE - 500 mm (19-3/4 inch) long

1шт.

15

151862A1

HOSE,63.00 mm ID x 400.00 mm

63.00 mm ID x 400.00 mm

1шт.

16

159044A1

HOSE ASSY.

HOSE - 550 mm (21-5/8 inch) long

1шт.

17

152793A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

20

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

21

159042A1

BRACKET

- valve mounting

1шт.

22

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

4шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

28

REF

INSTRUCTION

TEE - special, not used in this application, Includes: Ref. 29

2шт.

29

REF

INSTRUCTION

O-RING - tee, not used in this application

1шт.
