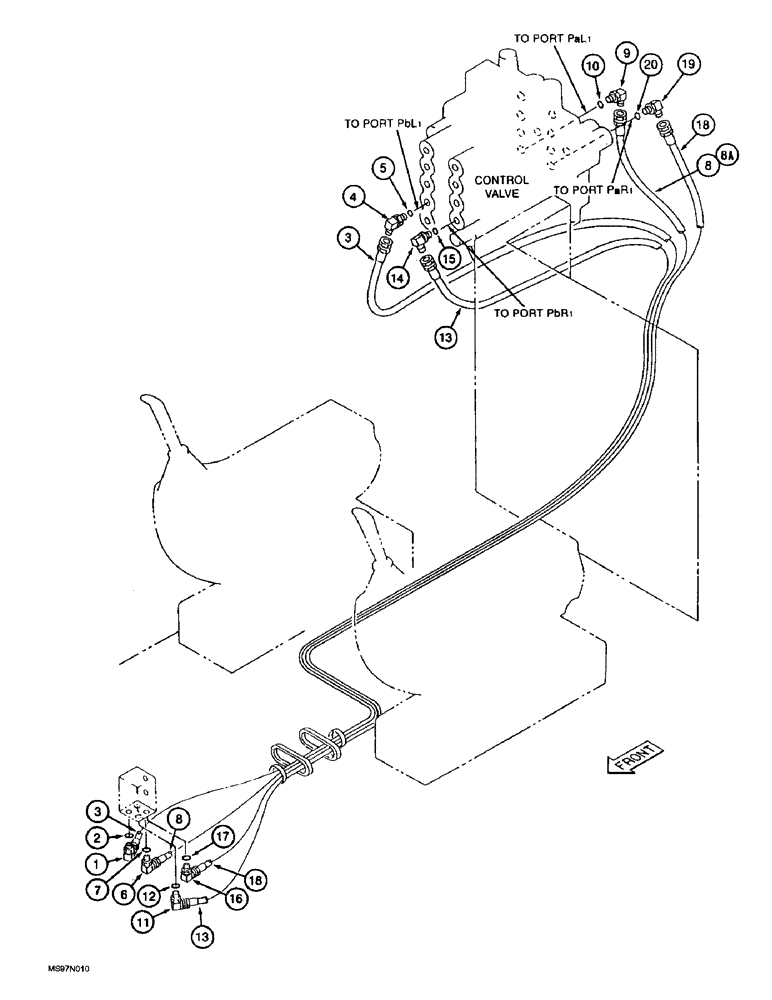

Запчасти Case 9045B (8-032) - TRAVEL CONTROL LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

157997A1

HOSE,6.3 mm ID x 3700.00 mm

- 3700 mm (145-3/8 inch) long, right-hand forward travel line (right-hand controller port 1 to control valve port PbL1)

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

165397A1

HYDRAULIC HOSE

3400 mm, Right-Hand Backward Travel Line (Right-Hand Controller Port "2" to Control Valve Port "PaL1")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

158130A1

HOSE,6.3mm ID x 1350mm L

- 3350 mm (131-7/8 inch) long, left-hand forward travel line (left-hand controller port 1 to control valve port PbR1)

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

159384A1

HYDRAULIC HOSE

- 3250 mm (127-15/16 inch) long, LH backward travel line (LH controller port 2 to control valve port PaR1)

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
