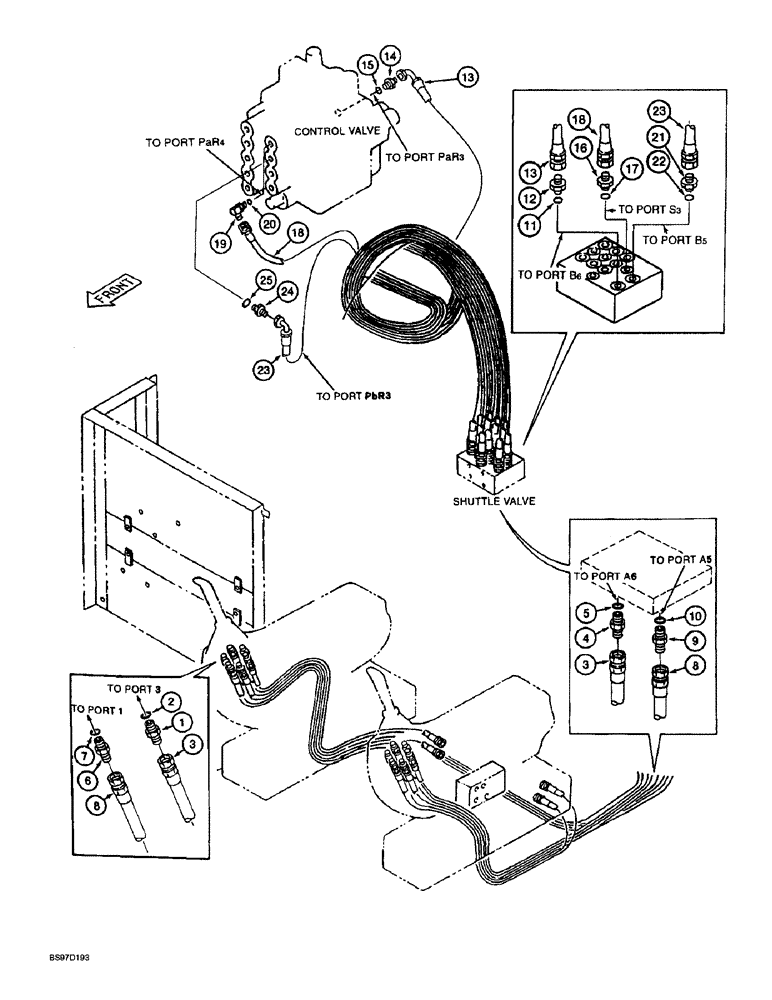

Запчасти Case 9045B (8-028) - BUCKET CONTROL LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, bucket open line (right-hand controller port 3 to shuttle valve port A6)

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Bucket close line (RH controller port 1 to shuttle valve port A5) 9.50 mm ID x 2100.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

159362A1

HYDRAULIC HOSE

- 2550 mm (100-3/8 inch) long, Bucket open line (Shuttle valve port B6 to control valve port PsR3)

1шт.

14

152747A1

ADAPTER

- straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152778A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, shared bucket open/close line (shuttle valve port S3 to control valve port PsR4)

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154475A1

O-RING

- adapter

1шт.

23

159232A1

HYDRAULIC HOSE

- 2700 mm (106-1/4 inch) long, Bucket close line (Shuttle valve port B5 to control valve port PbR3)

1шт.

24

152747A1

ADAPTER

- straight, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
