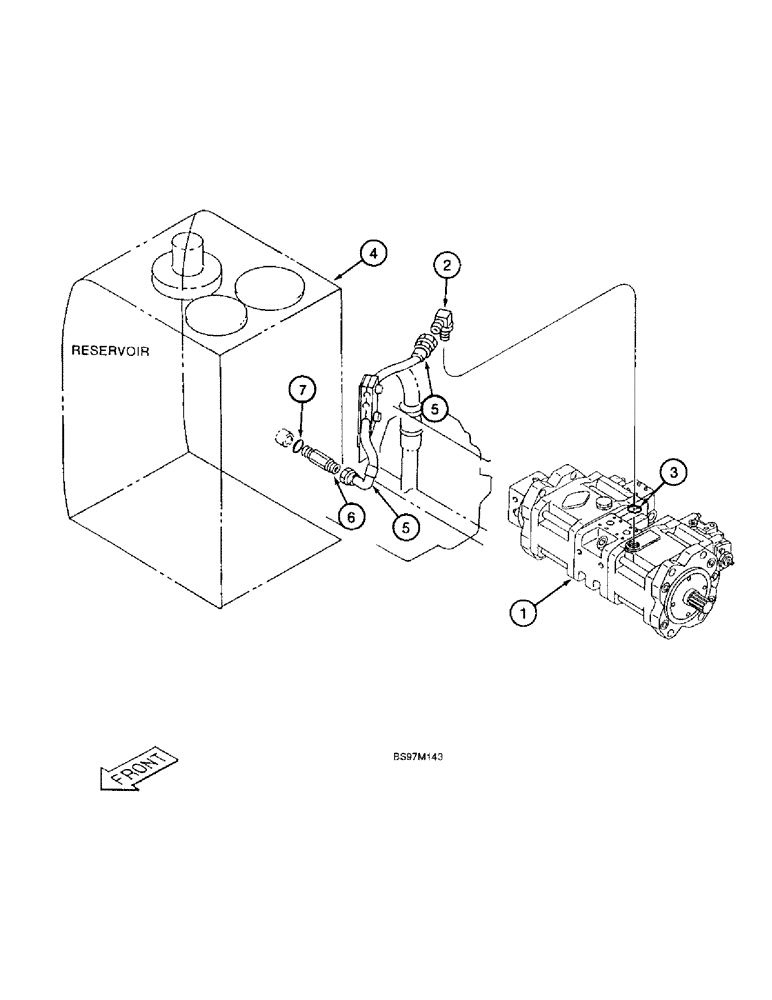

Запчасти Case 9045B (8-012) - PUMP RETURN LINE (08) - HYDRAULICS

1

162220A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list Figures 8-80 - 8-86

1шт.

1

162220A1R

REMAN-HYD PUMP

9045B CASE CRAWLER EXCAVATOR, PUMP - hydraulic (2/98-)

1шт.

1

162220A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ELBOW - special, 90 degree, Includes: Ref. 3

1шт.

3

154503A1

O-RING

O-RING - elbow

1шт.

4

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 8-2 for reservoir and related parts

1шт.

5

164794A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, pump to reservoir return line

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154503A1

O-RING

O-RING - adapter

1шт.
