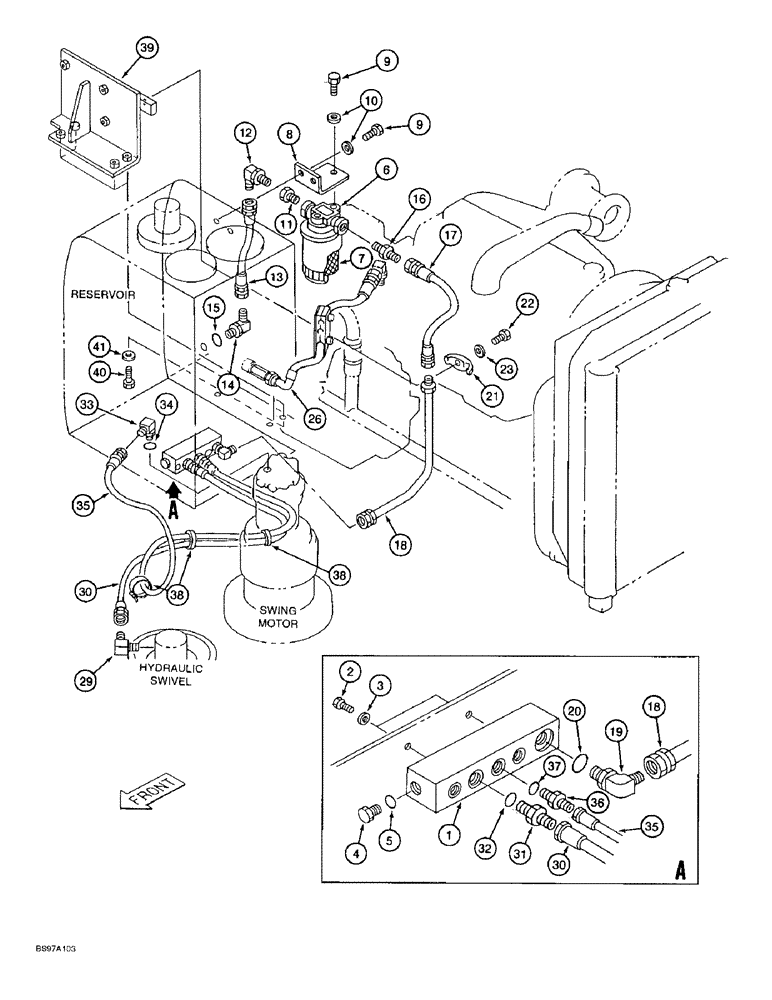

Запчасти Case 9045B (8-010) - FILTER AND RESERVOIR RETURN LINES (08) - HYDRAULICS

1

159084A1

MANIFOLD

- hydraulic

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

3

150811A1

WASHER

- flat, special, 12 mm

2шт.

4

159085A1

PLUG

- manifold, if used, Includes: Ref. 5

1шт.

5

154487A1

O-RING

- plug

1шт.

6

150792A1

FILTER ASSY

FILTER ASSEMBLY - oil, Includes: Ref. 7

1шт.

7

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

8

153456A1

BRACKET

- mounting

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

151077A1

BUSHING

REDUCER - special, at filter

1шт.

12

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

13

159356A1

HYDRAULIC HOSE,19.00 mm ID x 390.00 mm

- Filter to reservoir 19.00 mm ID x 390.00 mm

1шт.

14

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 15

1шт.

15

154503A1

O-RING

- elbow

1шт.

16

159088A1

ADAPTER

- straight

1шт.

17

159087A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

- Filter to tube 19.00 mm ID x 400.00 mm

1шт.

18

159086A1

TUBE ASSY.

TUBE - filter, Serial Range: hose-manifold

1шт.

19

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 20

1шт.

20

154503A1

O-RING

- elbow

1шт.

21

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

1шт.

26

REF

INSTRUCTION

HOSE - pump to reservoir return line see Figure 8-12

1шт.

29

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

30

159060A1

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

- Swivel to manifold 12.70 mm ID x 1500.00 mm

1шт.

31

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 32

1шт.

32

154487A1

O-RING

- elbow

1шт.

33

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- elbow

1шт.

35

160619A1

HYDRAULIC HOSE

HOSE - 1750 mm (68-7/8 inch) long, swing, Serial Range: motor-manifold

1шт.

36

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 37

1шт.

37

154475A1

O-RING

- adapter

1шт.

38

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

39

165469A1

BRACKET

- mounting

1шт.

40

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

41

150811A1

WASHER

- flat, special, 12 mm

4шт.
