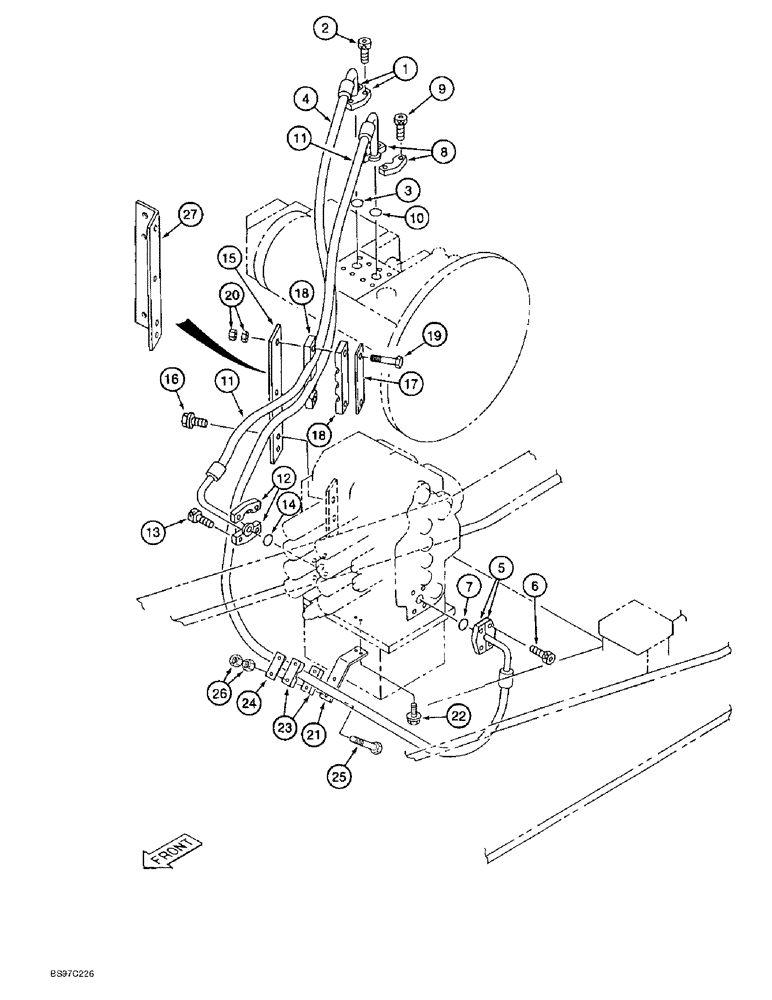

Запчасти Case 9045B (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

152598A1

HALF-COLLAR

FLANGE - split

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

3

155210A1

O-RING

- seal, pressure line hose at pump

1шт.

4

158993A1

HOSE ASSY.,19.05mm ID x 1830mm L

HOSE - 1830 mm (72 inch) long

1шт.

5

153459A1

FLANGE

- split

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

7

155211A1

O-RING

- pressure line hose at control valve

1шт.

8

152598A1

HALF-COLLAR

FLANGE - split

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

10

155210A1

O-RING

- seal, pressure line hose at pump

1шт.

11

158992A1

HOSE ASSY.

HOSE - 1010 mm (39-3/4 inch) long

1шт.

12

153459A1

FLANGE

- split

2шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

14

155211A1

O-RING

- pressure line hose at control valve

1шт.

15

REF

INSTRUCTION

BRACKET - flat, not used in this application

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

17

158996A1

PLATE

- flat

1шт.

18

158995A1

COLLAR

CLAMP - hose

2шт.

19

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, 12 - 1.75 x 100 mm, class 10.9

2шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

21

165398A1

BRACKET

- support

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

23

162248A1

COLLAR

CLAMP - hose

2шт.

24

162249A1

LARGE PLATE

PLATE - flat

1шт.

25

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 85 mm, class 10.9

2шт.

26

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

27

165466A1

BRACKET

- angle, 90 degree

1шт.
