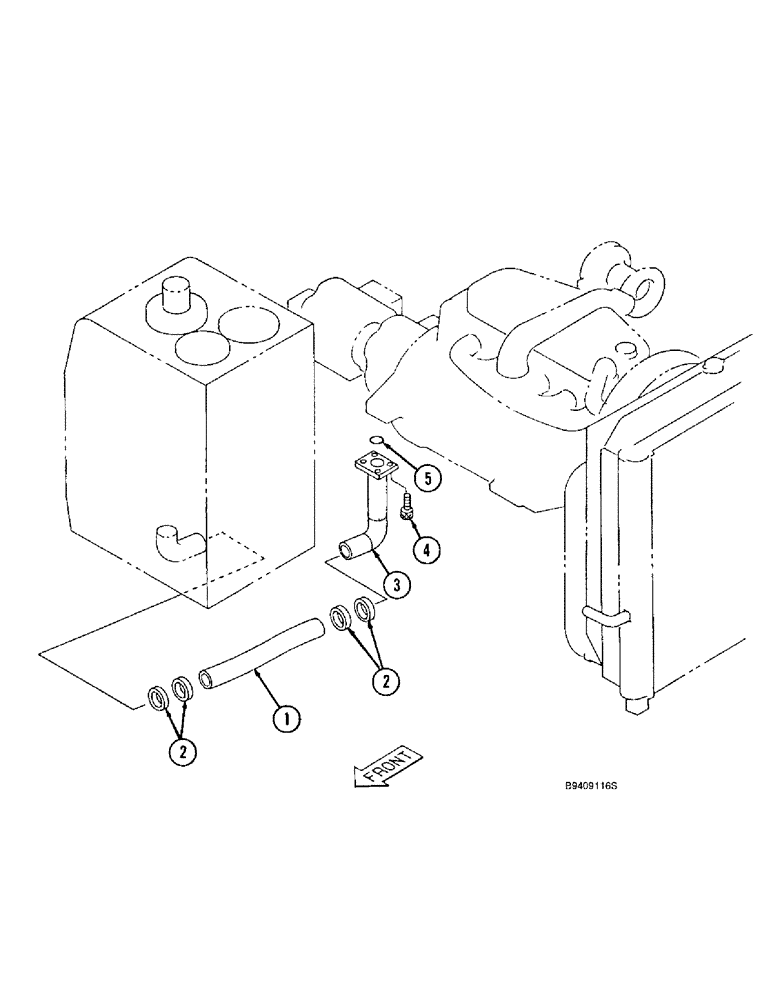

Запчасти Case 9045B (8-006) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

159434A1

HYDRAULIC HOSE,76.20 mm ID x 670.00 mm

- Reservoir to pump line, Reservoir end 76.20 mm ID x 670.00 mm

1шт.

2

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

4шт.

3

159707A1

TUBE ASSY.,76.3 mm OD, 284, 213.5 mm Length

TUBE - reservoir to pump line, pump end

1шт.

4

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

SCREW- hex socket, 12 - 1.75 x 30 mm, class 12.9, 4

4шт.

5

154679A1

O-RING

- tube

1шт.
