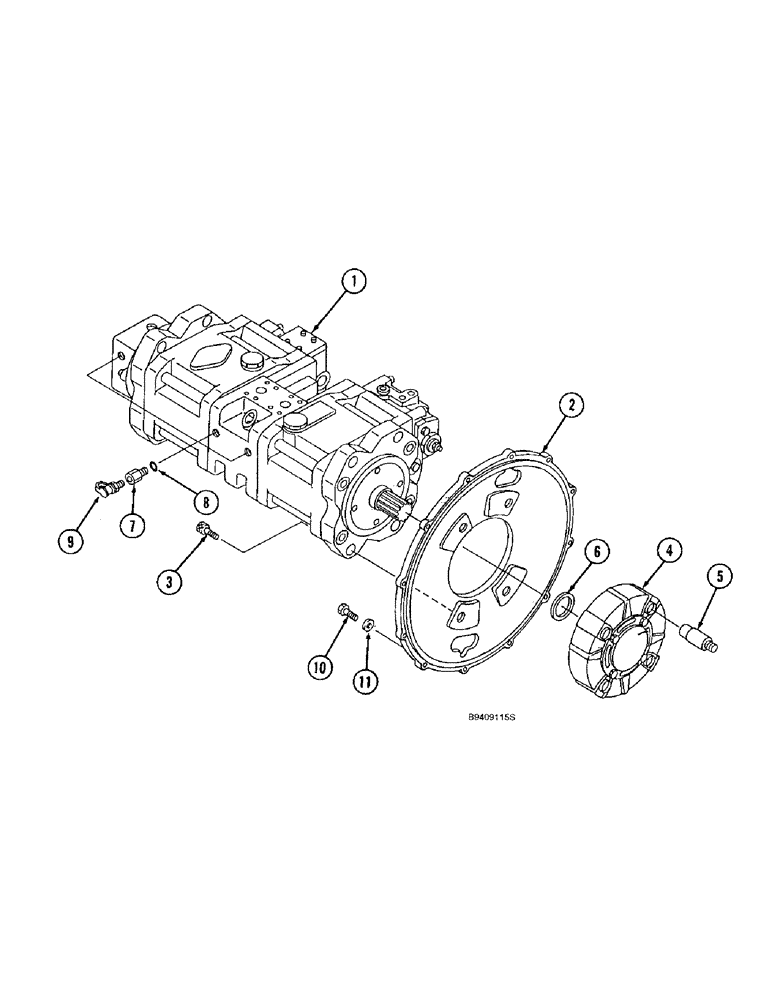

Запчасти Case 9045B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

162220A1

PUMP, HYDRAULIC

PUMP - hydraulic, parts list Figures 8-80 - 8-86

1шт.

1

162220A1R

REMAN-HYD PUMP

9045B CASE CRAWLER EXCAVATOR, PUMP - hydraulic (2/98-)

1шт.

1

162220A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

153437A1

FLANGE

FLANGE - mount, Includes: Ref. 3

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 55 mm, class 12.9

4шт.

4

159819A1

COUPLING

COUPLING - shaft

1шт.

5

153454A1

DOWEL

PIN - special

4шт.

6

159351A1

SPACER

SPACER - coupling

1шт.

7

151136A1

BUSHING

ADAPTER - straight, special, oil plug, Includes: Ref. 8

3шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - adapter

3шт.

9

150290A1

PLUG

PLUG - oil

3шт.

11

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm

8шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 30, 10.9, Full Thd

8шт.
