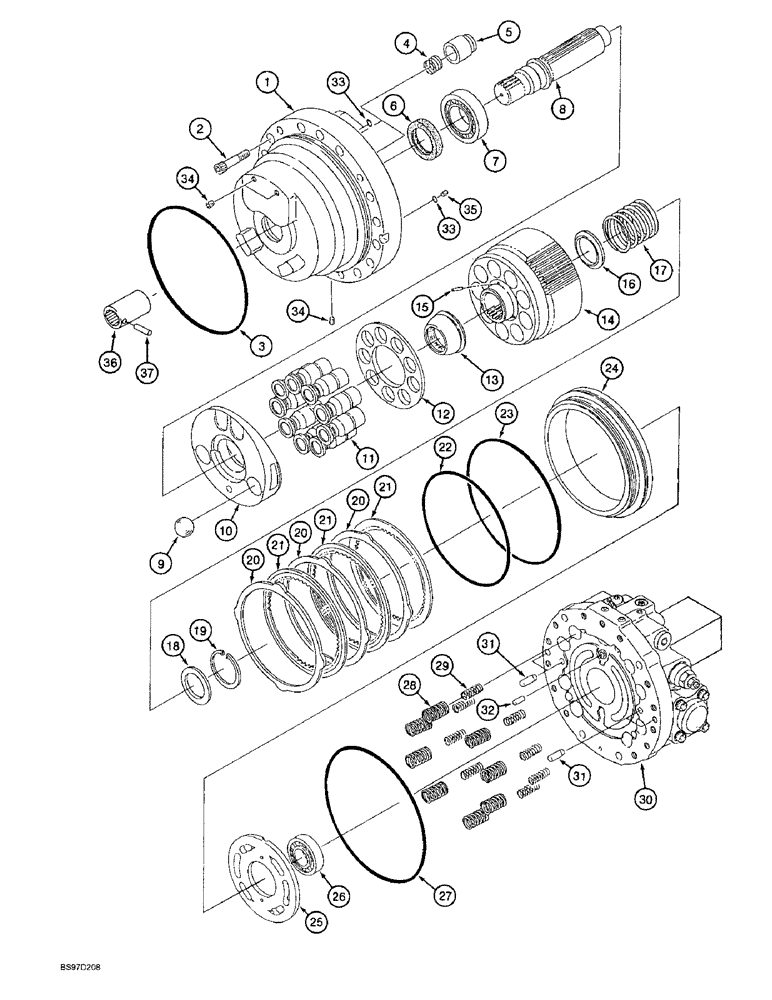

Запчасти Case 9045B (6-08) - TRACK DRIVE MOTOR ASSEMBLY, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN

164484A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 37

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - track drive motor

1шт.

Part of housing kit P/N 160490A1.

1шт.

2

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 60 mm, class 12.9

13шт.

3

155215A1

O-RING

- housing

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

4

160592A1

SPRING

- piston

2шт.

5

NSS

NOT SOLD SEPARAT

PISTON - motor

2шт.

Part of housing kit P/N 160490A1.

1шт.

6

159955A1

OIL SEAL

- oil

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

7

160597A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

8

164454A1

SHAFT SEAL

SHAFT - motor

1шт.

9

155950A1

BALL

- steel

2шт.

10

164482A1

TRAY

PLATE - swash

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

Part of cylinder block kit P/N 164491A1.

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

Part of retainer plate kit P/N 160574A1.

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER - retainer

1шт.

Part of retainer plate kit P/N 160574A1.

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

Part of cylinder block kit P/N 164491A1.

1шт.

15

155631A1

COTTER PIN

PIN - retainer

3шт.

16

160203A1

SPRING SEAT

SEAT - spring

1шт.

17

160590A1

SPRING

- cylinder block

1шт.

18

158113A1

COLLAR

- spring seat

1шт.

19

160103A1

RING, SNAP

RING - snap, special

1шт.

20

156326A1

PLATE

- separator

3шт.

21

160610A1

DISC

PLATE - friction

3шт.

22

159956A1

SEAL,184.2mm ID x 191.5mm OD x 5mm Thk

D-RING - brake piston, inner

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

23

160498A1

SEAL,201.4mm ID x 208.4mm OD x 5mm Thk

D-RING - brake piston, outer

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

24

160200A1

PISTON

- brake

1шт.

25

160330A1

PORT

PLATE - base

1шт.

26

160398A1

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING - captive roller

1шт.

27

155200A1

O-RING

-, Serial Range: housing-cover

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

28

160266A1

SPRING

- brake piston, outer

8шт.

29

160591A1

SPRING

- brake piston, inner

8шт.

30

REF

INSTRUCTION

PLATE ASSEMBLY - parts list Figures 6-10 and 6-13

1шт.

31

160097A1

COTTER PIN

PIN - dowel

4шт.

32

155578A1

PIN

- dowel

1шт.

33

154451A1

O-RING

- orifice

4шт.

Part of motor seal kit P/N 160219A1.

1шт.

34

155479A1

PLUG

- port

5шт.

Part of housing kit P/N 160490A1.

1шт.

35

155961A1

ORIFICE

PLUG - orifice, housing

1шт.

Part of housing kit P/N 160490A1.

1шт.

36

155257A1

COUPLING

- shaft

1шт.

37

738-1650

LOCK PIN,M6 x 50, Slotted

PIN - roll, 6 x 50 mm

1шт.

160219A1

SEAL KIT

KIT - seal, motor, Includes: Ref. 3, 6, 22, 23, 27 and 33 on this figure and parts on Figures 6-10 - 6-13

1шт.

160490A1

PIPE SET

KIT - housing, Includes: Ref. 1, 5, 34 and 35

1шт.

164491A1

KIT

- cylinder block, Includes: Ref. 11 and 14

1шт.

160574A1

SET OF PARTS

KIT - retainer plate, Includes: Ref. 12 and 13

1шт.
