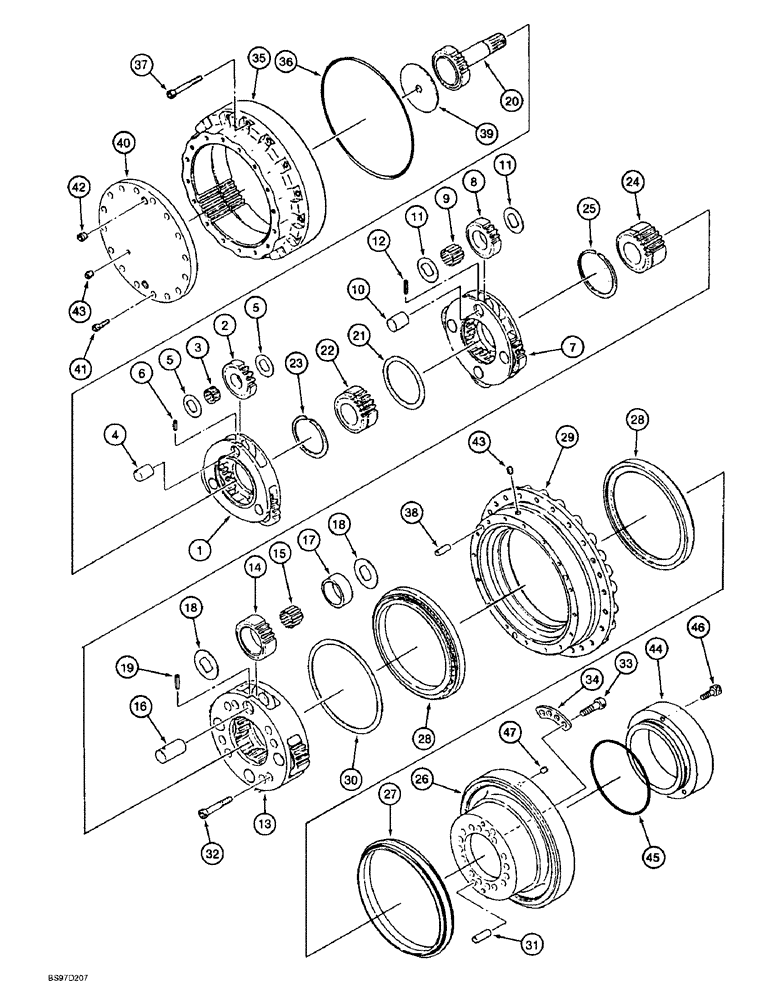

Запчасти Case 9045B (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

162111A1

REDUCER

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 47

1шт.

155806A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear, A, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - gears, A

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - planetary, A

3шт.

3

NSS

NOT SOLD SEPARAT

BEARING - needle

3шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - gear, A

3шт.

5

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

6

738-1525

LOCK PIN,M5 x 25, Slotted

PIN - roll, 5 x 25 mm

3шт.

155801A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear, B, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - gears, B

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - planetary, B

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - carrier

45шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - gear, B

3шт.

11

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

12

738-1525

LOCK PIN,M5 x 25, Slotted

PIN - roll, 5 x 25 mm

3шт.

155802A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear, C, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - gears, C

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - planetary, C

4шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - carrier

72шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - gear, C

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - floating

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust

8шт.

19

838-5540

LOCK PIN,M5 x 40, Slotted

PIN, LOCK, M5 x 40, Slotted

4шт.

20

155277A1

PINION

GEAR - drive

1шт.

21

155391A1

PLATE, THRUST

PLATE - thrust

1шт.

22

155278A1

SUN GEAR

GEAR - sun

1шт.

23

155657A1

RING, SNAP

RING - snap

1шт.

24

155279A1

SUN GEAR

GEAR - sun

1шт.

25

155643A1

RING, SNAP

RING - snap

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE - transmission

1шт.

27

155298A1

SEAL

- face

1шт.

28

156120A1

BEARING, BALL,280mm ID x 370mm OD x 40mm W

BEARING - ball

2шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

30

165268A1

SHIM KIT

KIT - shim

1шт.

31

155658A1

COTTER PIN

PIN - special

4шт.

32

863-18090

HEX SOC SCREW,M18 x 90mm, Cl 12.9

BOLT - hex socket, 18 - 2.5 x 90 mm, class 12.9

4шт.

33

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

BOLT - hex socket, 18 - 2.5 x 50 mm, class 12.9

16шт.

34

156337A1

PLATE, SPACER

PLATE - lock

4шт.

35

155280A1

PINION

GEAR - ring

1шт.

36

155181A1

O-RING

- ring gear

1шт.

37

863-14095

HEX SOC SCREW,M14 x 95mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 95 mm, class 12.9

24шт.

38

155647A1

COTTER PIN

PIN - dowel

3шт.

39

165269A1

SET OF PARTS

KIT - plate, thrust

1шт.

40

156335A1

COVER

- end

1шт.

41

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 20 mm, class 12.9

16шт.

42

151035A1

PLUG

- pipe, 3/4 diameter

2шт.

43

151026A1

PLUG

- port, 1/4 diameter

2шт.

44

NSS

NOT SOLD SEPARAT

SPACER - transmission

1шт.

45

165222A1

O-RING

- spacer

1шт.

46

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 60 mm, class 12.9

3шт.

47

163367A1

PLUG

- special

1шт.
