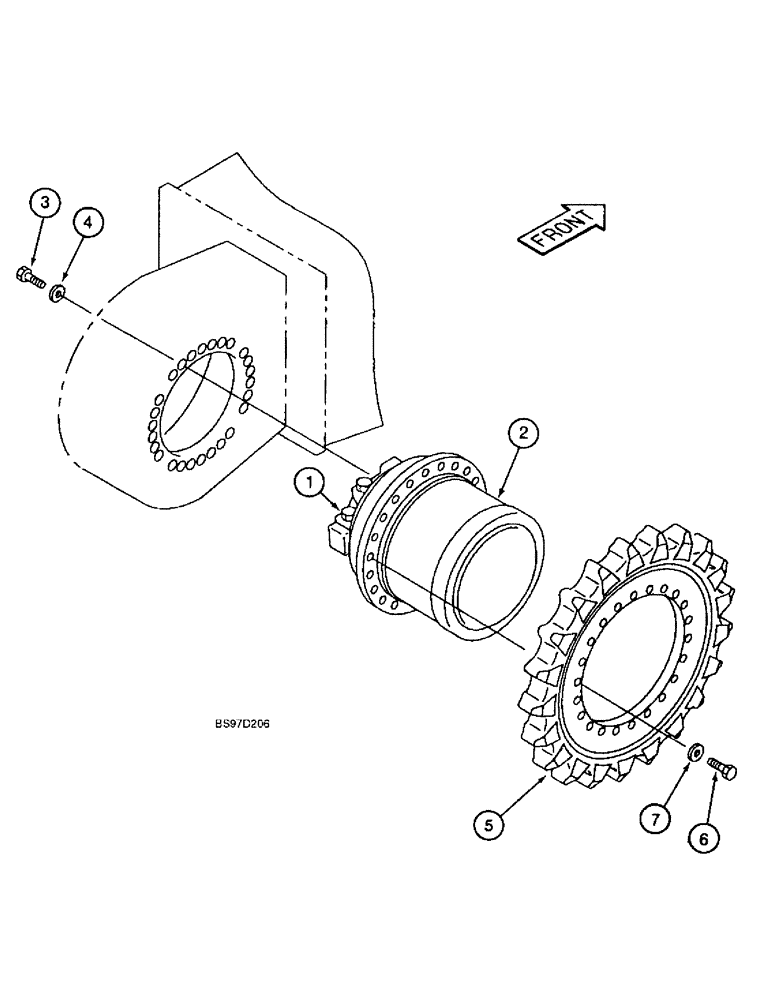

Запчасти Case 9045B (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

163850A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 and 2

2шт.

1

162111A1

REDUCER

TRANSMISSION ASSEMBLY - final drive, parts list figure 6-4

1шт.

2

164484A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, parts list figure 6-8

1шт.

3

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

36шт.

4

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

36шт.

5

151758A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

6

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

7

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

48шт.
