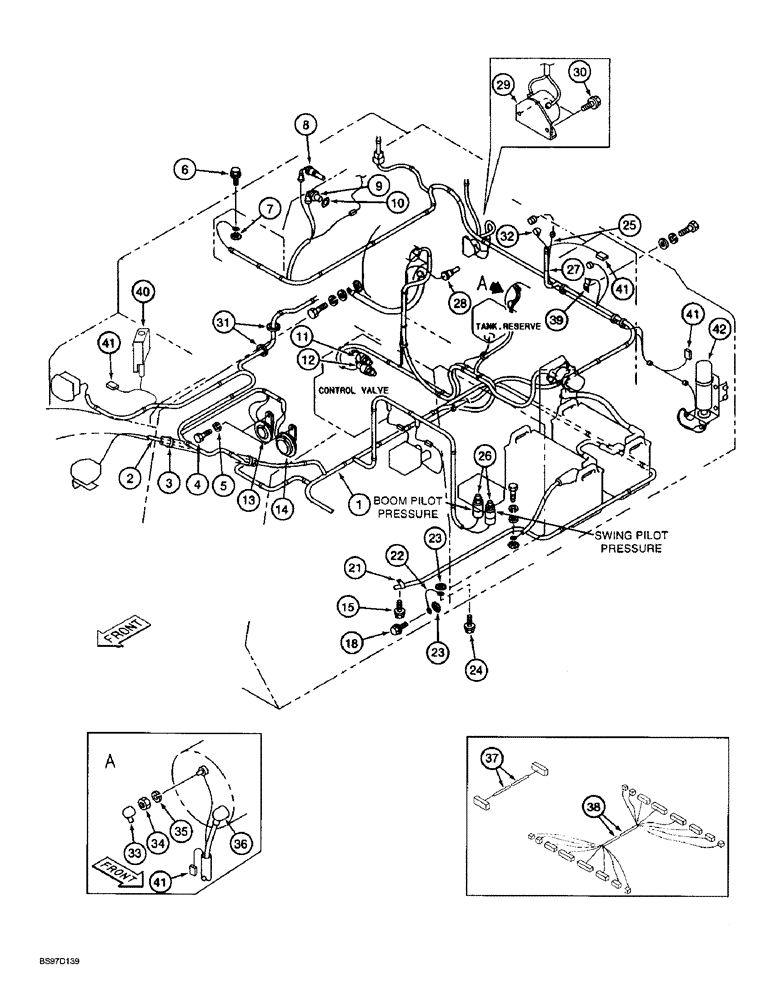

Запчасти Case 9045B (4-10) - MAIN WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

165185A1

HARNESS

- main wiring, Serial Range: -DAC0452147

1шт.

1

165803A1

HARNESS

- electrical wiring - Refer to SB, NEX SB 001 01, Start Serial: DAC0452148

1шт.

2

159913A1

HARNESS

- wiring, working lamp

1шт.

3

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

8

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #28 159147A1 is really used as the engine coolant temperature sensor. Ref. #28 screws into Ref. #9 reducer bushing shown on Figure 2-2.

1шт.

9

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature, hydraulic oil

1шт.

10

159901A1

SEALING WASHER

WASHER - sealing

1шт.

11

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot pressure

1шт.

12

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

13

159949A1

HORN

- electric, small

1шт.

14

159948A1

HORN

- electric, large

1шт.

15

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

18

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special

1шт.

21

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

22

159912A1

CABLE ASSY.

STRAP - ground

1шт.

23

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

23

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

24

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special

1шт.

25

116992A2

TUBE,0.125 mm OD

- nylon, 2693 mm (106 inch) long, cut from L60539X bulk tube, not shown

1шт.

26

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

27

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

28

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #28 159147A1 is really used as the engine coolant temperature sensor. Ref. #28 screws into Ref. #9 reducer bushing shown on Figure 2-2.

1шт.

29

162218A1

ALARM

- travel, works when moving backwards or forward

1шт.

30

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

BOLT - hex, special

1шт.

31

150520A1

GROMMET

- rubber

2шт.

32

159175A1

CAP

- terminal

1шт.

33

159173A1

CAP

- terminal

1шт.

34

829-1304

NUT,M4, Cl 8

- hex, 4 mm - 0.70, class 10

1шт.

35

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

37

REF

INSTRUCTION

HARNESS - wire, not used in this application

1шт.

38

REF

INSTRUCTION

HARNESS - wire, not used in this application

1шт.

39

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, cold start, see Ref. 10 on Figure 4-30

1шт.

40

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

41

231959A1

DIODE

- electrical

4шт.

42

L126094

VALVE

ASSEMBLY - solenoid, ether injection, see Figure 4-30, Ref. 1

1шт.
