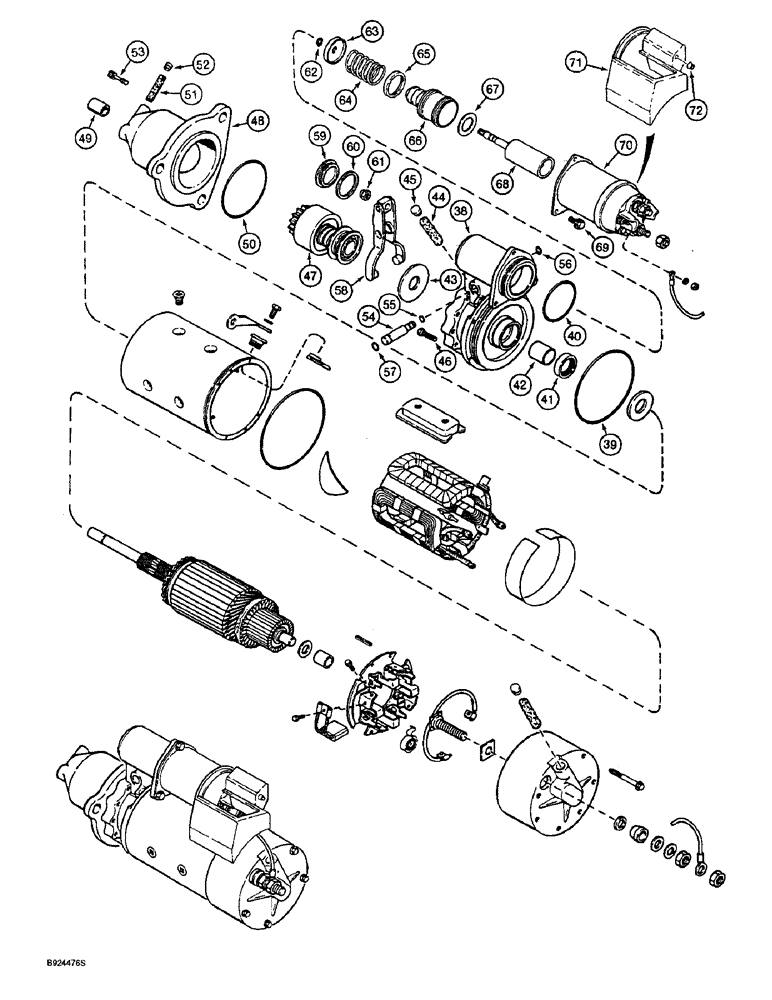

Запчасти Case 9045B (4-06) - STARTER ASSEMBLY - 114769A1, (CONT) (04) - ELECTRICAL SYSTEMS

114769A1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, 24 volt, continued from Figure 4-4, see Figure 2-46 for mounting, Includes: Ref. 38 - 72 and 2 - 37 on figure 4-4

1шт.

38

A49772

HOUSING

- shift lever

1шт.

39

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide

1шт.

Part of bushing kit P/N A187514

1шт.

40

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter shift lever kit P/N A187515

1шт.

41

R21582

OIL SEAL

- oil

1шт.

Part of bushing kit P/N A187514

1шт.

42

A49765

BUSHING

- armature

1шт.

Part of bushing kit P/N A187514

1шт.

43

A185121

WASHER

- shift lever housing

1шт.

Part of bushing kit P/N A187514

1шт.

44

A49567

WICK

- oil, armature bushing

1шт.

Part of bushing kit P/N A187514

1шт.

45

A49573

PLUG

- oil wick

1шт.

Part of bushing kit P/N A187514

1шт.

46

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch

5шт.

47

A47523

DRIVE

- starter

1шт.

48

A49773

HOUSING

- drive end

1шт.

49

A47257

BUSHING

- armature, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

- housing, drive end housing to shift lever housing

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter shift lever kit P/N A187515

1шт.

51

A47888

WICK

- oil, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

52

A47989

SPRING

PLUG - oil wick, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

53

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

SCREW - special, drive end housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

Part of starter shift lever kit P/N A187515

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

- shaft, inner

1шт.

Part of starter shift lever kit P/N A187515

1шт.

56

100-1137

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

Part of starter shift lever kit P/N A187515

1шт.

57

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of starter shift lever kit P/N A187515

1шт.

58

A49775

LEVER

- shift

1шт.

Part of starter shift lever kit P/N A187515

1шт.

59

R21587

PLUG

- inspection, lever housing, inspectiion, shift lever housing

1шт.

60

A41924

GASKET

- housing

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter shift lever kit P/N A187515

1шт.

61

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter shift lever kit P/N A187515

1шт.

62

100-1137

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

- spring

1шт.

64

A41242

SPRING

- plunger return

1шт.

65

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

66

A49589

BOOT

- plunger

1шт.

67

A41922

WASHER

- plunger seat

1шт.

68

A49757

PLUNGER

- solenoid

1шт.

69

1546550C1

BOLT,Torx Wshr Hd, 1/4" - 20 x 0.56"

SCREW - includes washer

3шт.

70

1546546C1

SOLENOID

ASSEMBLY - starter, parts list Figure 4-8

1шт.

71

L128826

SHIELD

GUARD - starter terminal

1шт.

72

1546549C1

NUT

- hex flange, special, No. 10 - 32 NF

1шт.

A187514

KIT

- bushing, Includes: Refs. 39 - 45, 49 - 52, 60, 61 and in figures 4-4 and 4-67

1шт.

A187515

KIT

- shift lever, starter, Includes: Refs. 40, 50, 54-58, 60 and 61 above

1шт.
