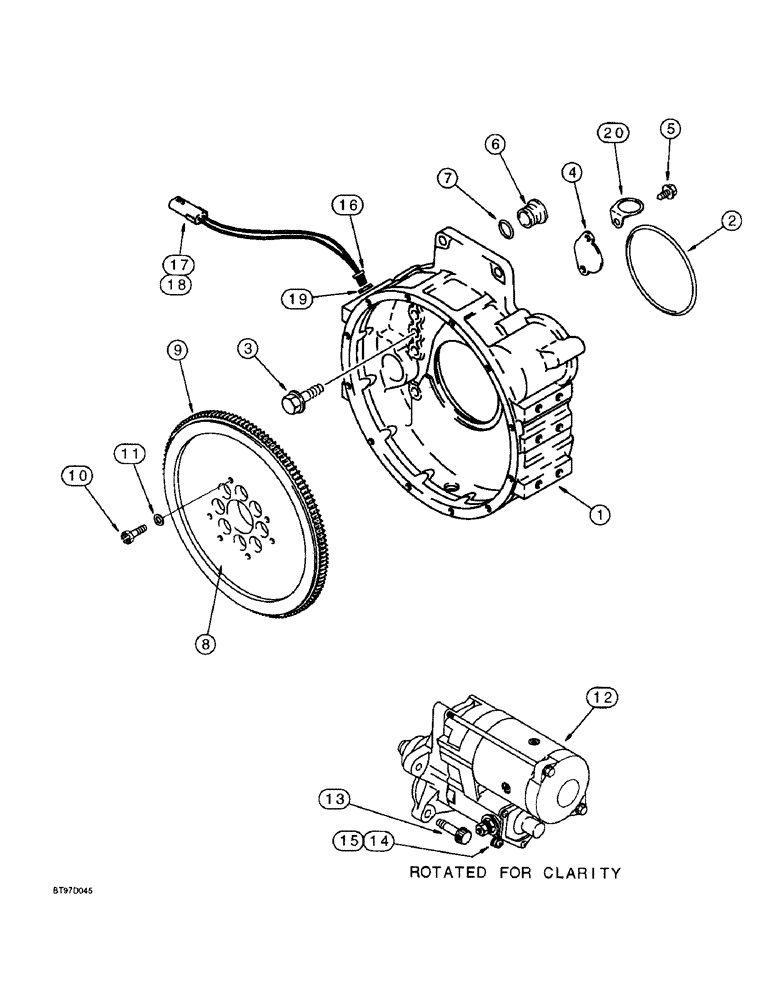

Запчасти Case 9045B (2-44) - FLYWHEEL AND HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J908799

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

12шт.

4

J925234

PLATE

- cover

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm

2шт.

6

J910248

PLUG

- flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J907466

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

- ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.

12

114769A1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, 24 volt, parts list Figures 4-4 - 4-8

1шт.

13

J908321

12 PT SCREW

BOLT - 12 point, special, 12 point, starter to flywheel housing

3шт.

14

L128826

SHIELD

GUARD - starter terminal

1шт.

15

225-14210

NUT,#10-32

Not shown #10-32

1шт.

A187584

SENSOR

SENDER ASSEMBLY - engine rpm, at top of flywheel housing, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - threaded, with cables

1шт.

17

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - engine rpm sender, female

1шт.

18

225127C1

PLUG

SEAL - sender cables

2шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

1шт.

20

J923610

CLIP

- breather hose, retaining

1шт.
