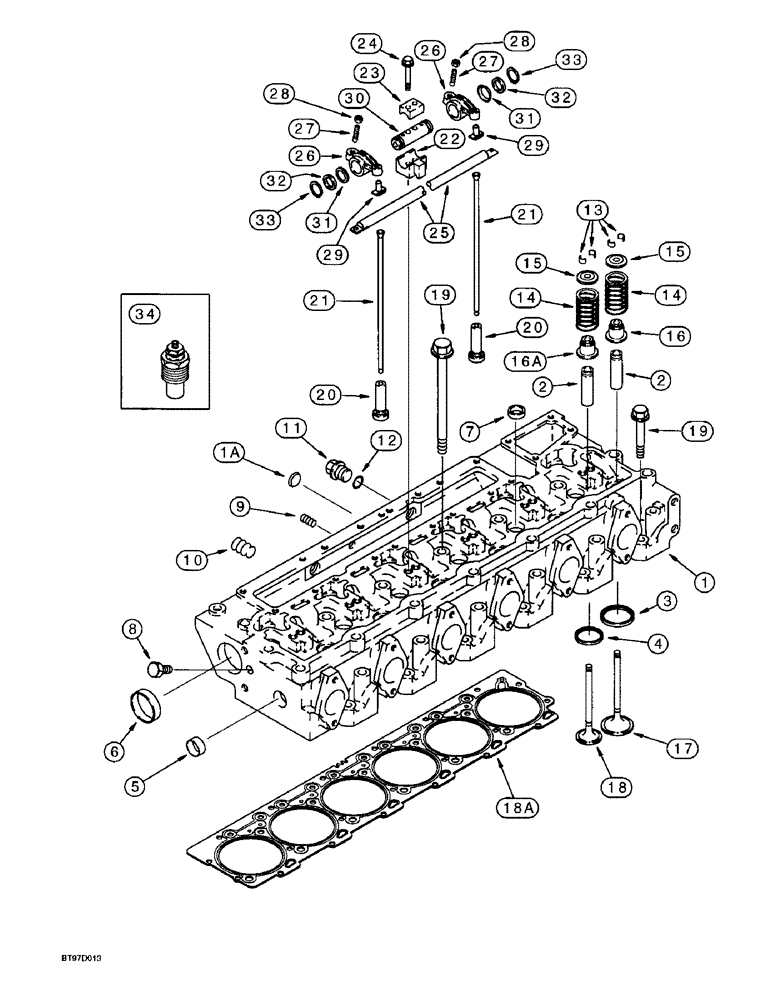

Запчасти Case 9045B (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR925642

HEAD

ASSEMBLY - cylinder, with valves, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 18

1шт.

JC916464

HEAD

RETURN NUMBER - use this part number to return head, with valves, for credit when using a remanufactured assembly, Includes: Ref. 1 - 18

1шт.

J925642

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 18

1шт.

84262945R

REMAN-CYLINDER HEAD

9045B (2/98-), Reman For New P/N J925642

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J920031

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, Includes: Ref. 1A - 7

1шт.

84262945R

REMAN-CYLINDER HEAD

9045B (2/98-), Reman For New P/N J920031

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1a

J912900

PLUG

- expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem

12шт.

3

J924582

INSERT

- seat, intake valve

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

- seat, exhaust valve

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

J920443

PLUG

- expansion, 30 mm O.D.

1шт.

6

A77782

PLUG

- expansion, 58 mm O.D.

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

- hex, 1/16 inch PT

1шт.

9

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

10

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

11

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J906412

VALVE SPRING

SPRING, VALVE

12шт.

15

J912976

RETAINER

- valve spring

12шт.

16

J915707

SEAL

- intake and exhaust valve stem and guide

6шт.

16a

J919038

SEAL

- exhaust valve stem and guide

6шт.

17

J924492

STD INLET VALVE

VALVE - intake

6шт.

18

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

18a

J928168

GASKET

- cylinder head, standard, see Ref. 8 on Figure 2-28

1шт.

19

J917728

BOLT

- cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J931623

TAPPET

- valve, push rod

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

- shaft, rocker arm

6шт.

23

J901693

CLAMP

- retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9

12шт.

25

J919677

TUBE

- oil, rocker arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 27 - 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J919435

SHAFT

- rocker

6шт.

31

J906100

SPRING CUP

WASHER - spring

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special

12шт.

33

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.

34

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed in middle, left-hand side of cylinder head

1шт.

The 1983238C1 engine coolant sender is still used in the hole in the block that has 1/2" NPTF thread. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. See 9020B catalog, page 2-56 artwork, Ref. 1. There are two threaded holes with an unthreaded hole between them. The reducer bushing goes into the hole to the left. The 9010B through 9045B excavators actually use two engine coolant senders to activate two different cab warning functions.

1шт.
