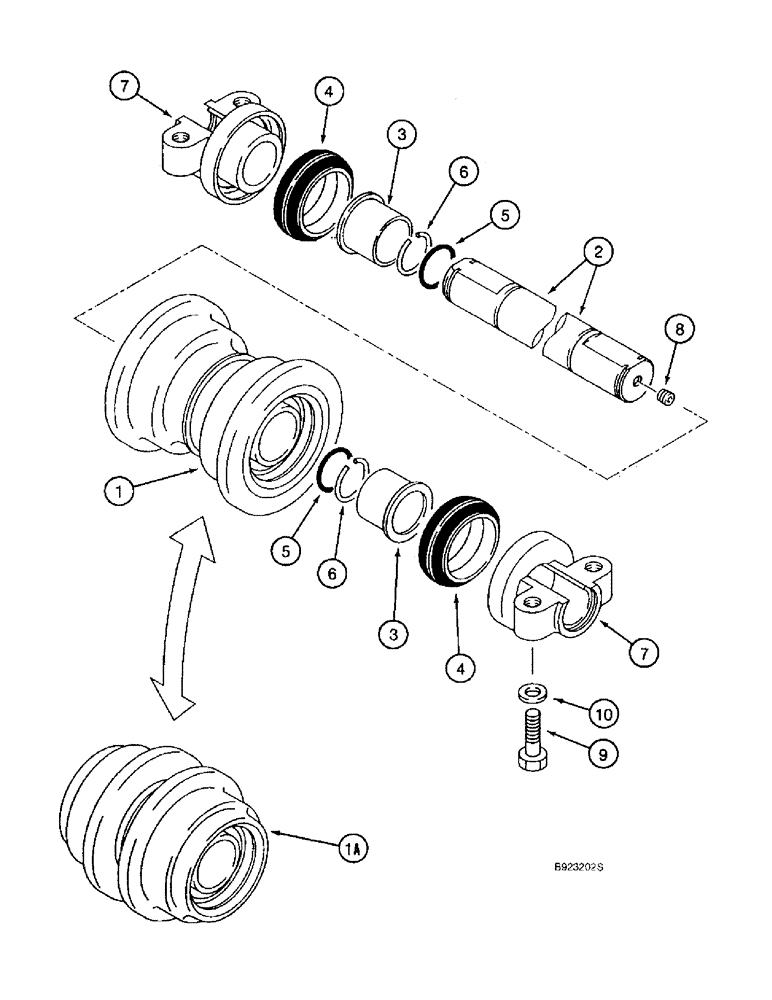

Запчасти Case 9045B (5-16) - TRACK ROLLERS, SERVICE REPLACEMENT (11) - TRACKS/STEERING

173409A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with outer flanges, service replacement for 151865A1 on Figure 5-14, Includes: Ref. 1 - 9

10шт.

173407A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with inner flanges, service replacement for 151871A1 on Figure 5-14, Includes: Ref. 1 - 9

8шт.

1

NSS

NOT SOLD SEPARAT

HUB - outer flanges

1шт.

1a

NSS

NOT SOLD SEPARAT

HUB - inner flanges

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - roller

2шт.

4

173401A1

SEAL

- face, includes two rings and two seals

2шт.

5

173402A1

O-RING

- shaft

2шт.

6

173405A1

CLIP

RING - retaining, shaft retaining (wire clip)

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

8

173404A1

PLUG

- port

1шт.

9

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

72шт.

10

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

72шт.
