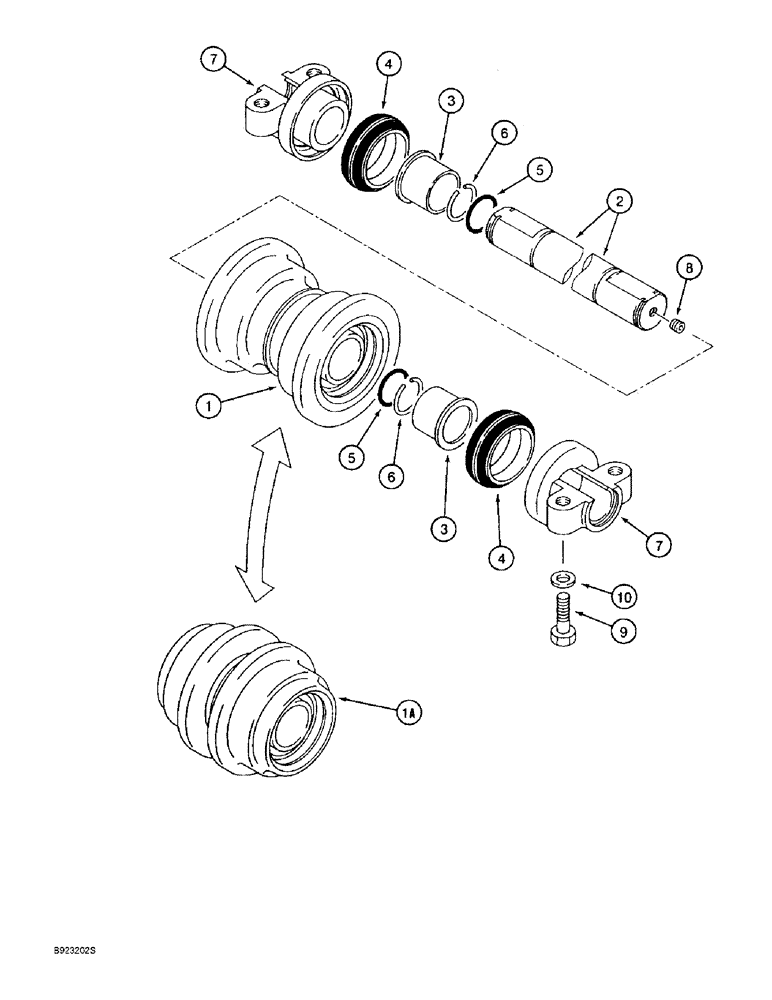

Запчасти Case 9045B (5-14) - TRACK ROLLERS, ORIGINAL EQUIPMENT (11) - TRACKS/STEERING

151865A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with outer flanges, original equipment, replaced by 173409A1 for service on Figure 5-16, Includes: Ref. 1 - 8

10шт.

151871A1

ROLLER ASSY.

ROLLER ASSEMBLY - track, with inner flanges, original equipment, replaced by 173407A1 for service on Figure 5-16, Includes: Ref. 1 - 8

8шт.

1

151678A1

SHIFTER ROLLER

HUB - outer flanges

1шт.

1a

151681A1

SHIFTER ROLLER

HUB - inner flanges

1шт.

2

151875A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

151509A1

RING

BUSHING - roller

2шт.

4

151126A1

SEAL

- face, track roller, includes two rings and two seals

2шт.

5

154655A1

O-RING

- shaft

2шт.

6

151152A1

LOCKING RING

RING - retaining, shaft retaining

2шт.

7

151881A1

COLLAR

BRACKET - mounting, track roller

2шт.

8

150824A1

PLUG

- port

1шт.

9

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

- hex, 20 - 2.5 x 75 mm, class 10.9

72шт.

10

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

72шт.
