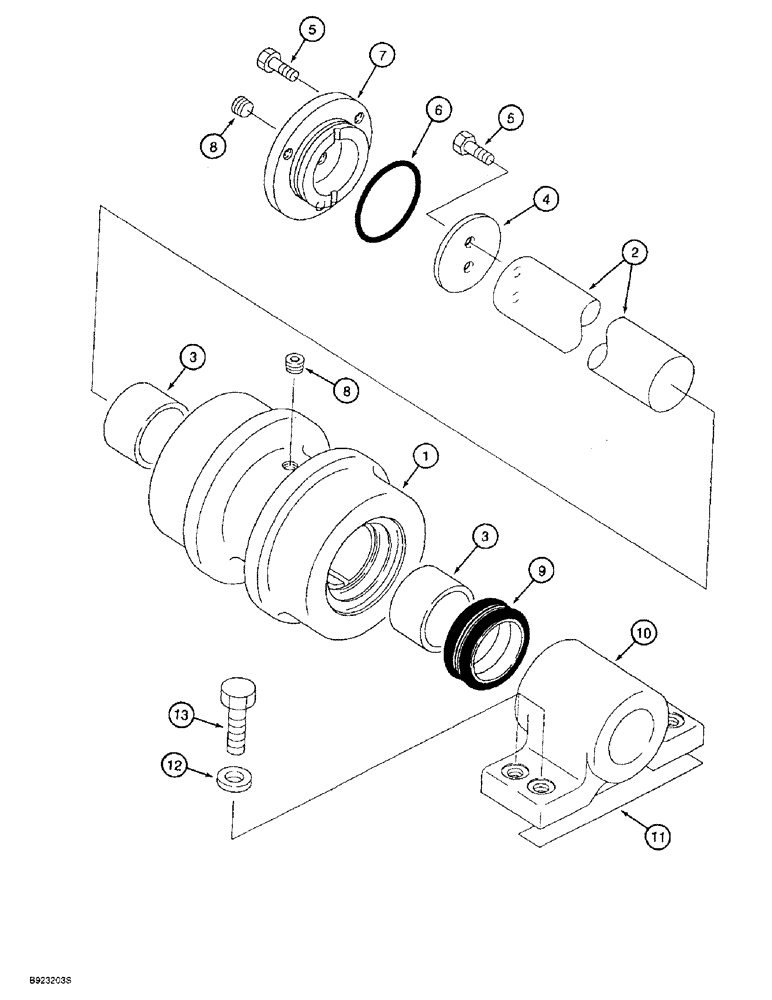

Запчасти Case 9045B (5-10) - TRACK CARRIER ROLLER, ORIGINAL EQUIPMENT (11) - TRACKS/STEERING

158745A1

ROLLER ASSY.

ROLLER ASSEMBLY - carrier, track, original equipment, replaced by 170559A1 for service on Figure 5-12, Includes: Ref. 1 - 10

4шт.

1

158746A1

SHIFTER ROLLER

ROLLER - carrier, track

1шт.

2

152101A1

WHEEL SHAFT

SHAFT - carrier roller

1шт.

3

158747A1

BUSHING

- flanged, fabricated, 60 x 64 x 45 mm long

2шт.

4

152147A1

PLATE, THRUST

RETAINER - shaft, thrust plate

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

6

154679A1

O-RING

- carrier roller

1шт.

7

152143A1

COVER

- end, carrier roller

1шт.

8

150821A1

PLUG

- port, carrier roller

2шт.

9

150737A1

SEAL

- face, includes two seals and two rings

1шт.

10

152103A1

BRACKET

- mounting, carrier roller

1шт.

11

150003A1

HUB

SHIM - bracket height, 0.8 mm (.03 inch) thick

1шт.

12

150991A1

WASHER

- flat, special, 16 mm, bracket mounting

16шт.

13

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

16шт.
