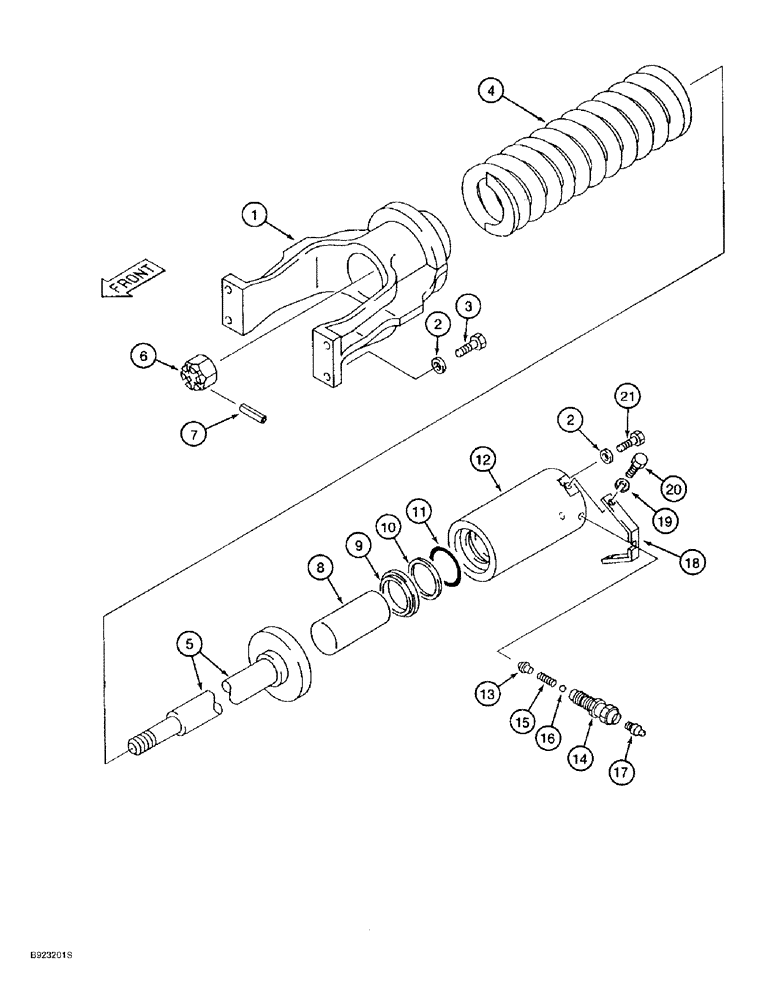

Запчасти Case 9045B (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

151825A1

FORK

YOKE - track adjuster

2шт.

2

150991A1

WASHER

- flat, special, 16 mm

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

4

151830A1

SPRING

- track tension

2шт.

5

151835A1

ROD,THREADED

GUIDE - tension spring

2шт.

6

825-3064

SLOTTED NUT,M64 x 6, Cl 8

NUT - hex slotted, 64 mm - 6

2шт.

7

538-816

LOCK PIN,M10 x 100, Slotted

PIN - roll, 10 x 100 mm

2шт.

151840A1

CYLINDER

ASSEMBLY - track adjuster, Includes: Ref. 8 - 20

2шт.

8

151846A1

JACK PISTON

ROD - piston

1шт.

9

150689A1

SEAL

WIPER - rod

1шт.

10

154133A1

BACK-UP RING

RING - backup, rod seal

1шт.

11

154704A1

O-RING

- seal, piston rod

1шт.

12

151850A1

CYLINDER

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET - check valve

1шт.

14

150112A1

VALVE SEAT

BODY - check valve

1шт.

15

150115A1

SPRING

- check valve

1шт.

16

150897A1

BALL

- check

1шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

18

152171A1

BRACKET

- mounting, check valve

1шт.

19

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

20

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

21

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.
