(5-06) - IDLER WHEEL

Запчасти Case 9045B (5-06) - IDLER WHEEL (11) - TRACKS/STEERING

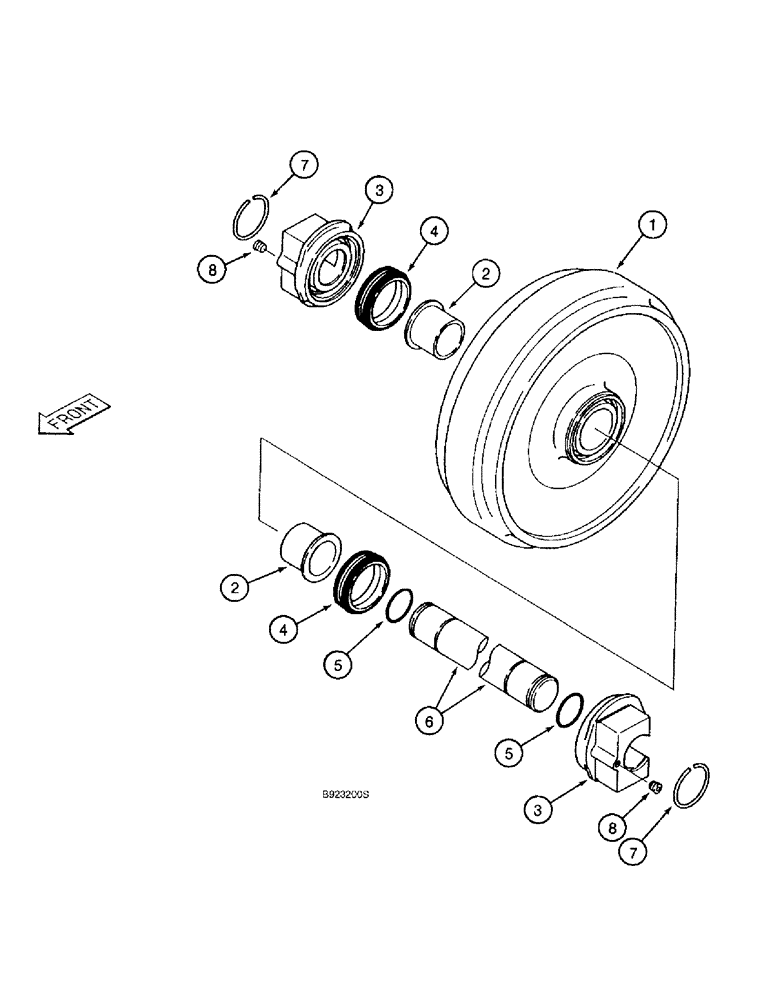

Схема запчастей Case 9045B - (5-06) - IDLER WHEEL (11) - TRACKS/STEERING
7
6
4
1
3
8
2
3
5
7
4
2
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

152176A1

FRONT IDLER

WHEEL ASSEMBLY - idler, Includes: Ref. 1 - 8

2шт.

1

152179A1

FRONT IDLER

WHEEL - idler

1шт.

2

151469A1

BUSHING

- Idler wheel

2шт.

3

151819A1

HUB

- idler support

2шт.

4

150706A1

SEAL

- face, includes two rings and two seals

2шт.

5

154679A1

O-RING

- shaft seal

2шт.

6

151465A1

WHEEL SHAFT

SHAFT - idler wheel

1шт.

7

151386A1

COLLAR

RING - snap (wire clip)

2шт.

8

150821A1

PLUG

- port

2шт.
