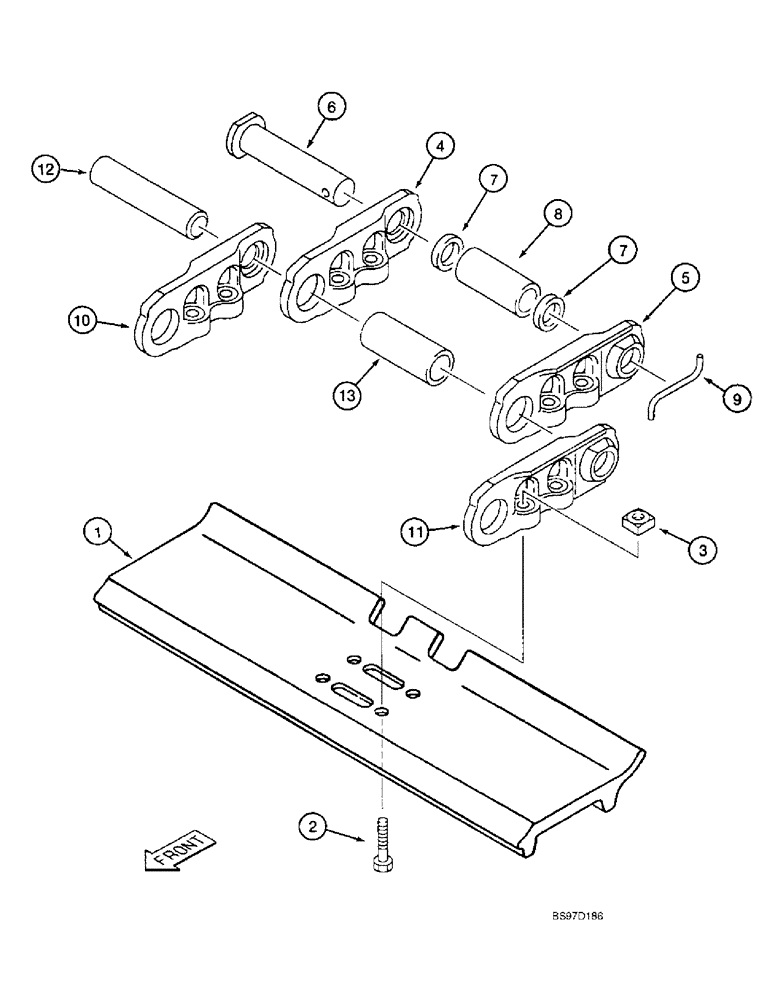

Запчасти Case 9045B (5-04) - TRACK CHAIN AND SHOES (11) - TRACKS/STEERING

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - track, Includes: Ref. 1 - 13

2шт.

1

152263A1

TRACK SHOE

SHOE - track, three bar grouser, 800 mm (31-1/2 inch) wide

50шт.

2

151985A1

BOLT,Spher Hex, M20 x 65mm

BOLT - special

200шт.

3

151767A1

NUT

- special

200шт.

151979A1

TRACK CHAIN

CHAIN ASSEMBLY - track, without track shoes, Includes: Ref. 4 - 13

1шт.

4

151998A1

LINK

- master, right-hand

1шт.

5

152003A1

LINK

- master, left-hand

1шт.

6

152062A1

HEADED PIN,44mm OD x 247.5mm L

PIN - master link

1шт.

7

150048A1

SPACER

- bushing

2шт.

8

151037A1

BUSHING

- master pin

1шт.

9

151064A1

LINCH PIN

PIN - lock, for master link pin

1шт.

10

151989A1

TRACK LINK

LINK - track, standard right-hand

49шт.

11

151993A1

LINK

- track, standard left-hand

49шт.

12

150958A1

PIN

- track, standard track chain link

49шт.

13

150955A1

RING

BUSHING - track, standard track chain link

49шт.

For info. on new sealed and greased track chain parts for 800 mm shoe applications see installation diagram 364070A1.

1шт.

For info. on new sealed and greased track chain parts for 700 mm shoe applications see installation diagram 364071A1.

1шт.

For info. on new sealed and greased track chain parts for 600 mm shoe applications see installation diagram 364072A1.

1шт.
