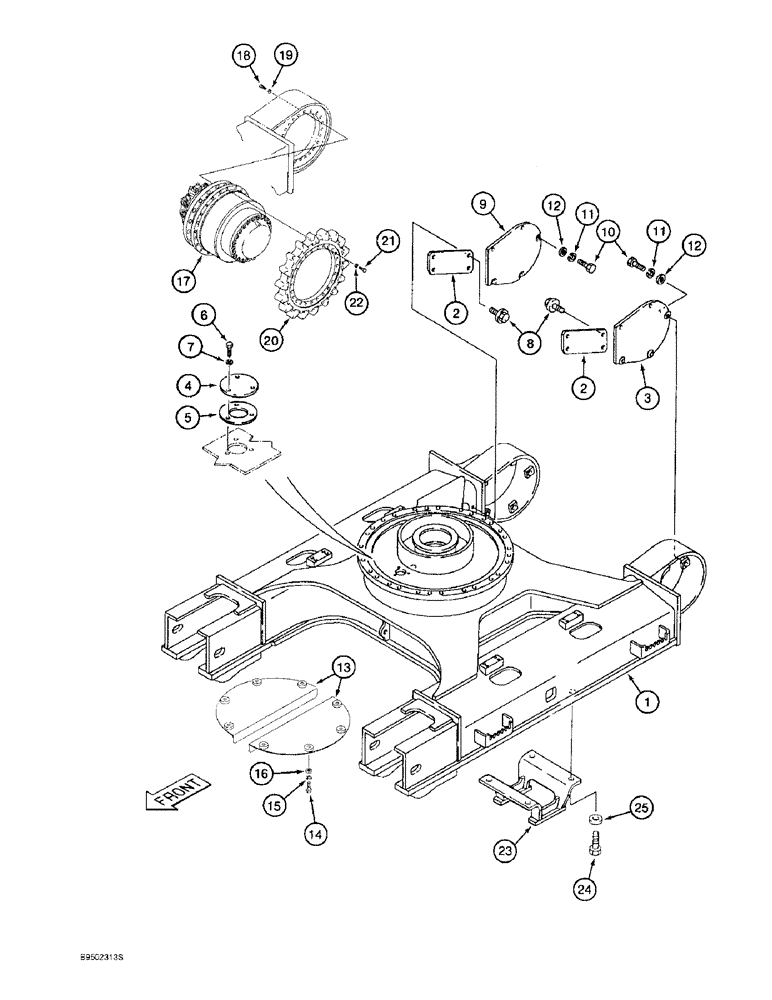

Запчасти Case 9045B (5-02) - TRACK FRAME, DRIVE SPROCKET AND ACCESS COVERS (11) - TRACKS/STEERING

1

165853A1

FRAME

- lower, excavator

1шт.

2

152068A1

COVER

- access, piping

2шт.

3

151805A1

COVER

- access, left-hand motor

1шт.

4

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

5

158930A1

CORK SEAL

GASKET - access cover

1шт.

6

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, flange head

8шт.

9

151803A1

ADHESIVE STRIP

COVER - access, right-hand motor

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

10шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

10шт.

12

150811A1

WASHER

- flat, special, 12 mm

10шт.

13

162277A1

COVER

- access

2шт.

14

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

15

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

17

163850A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see Figure 6-2

2шт.

18

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

36шт.

19

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

36шт.

20

151758A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

21

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

22

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

48шт.

23

151967A1

GUARD ASSY.

GUIDE - track

2шт.

24

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

8шт.

25

150996A1

WASHER

- special

8шт.
