Запчасти Case 9045B (2-16) - MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

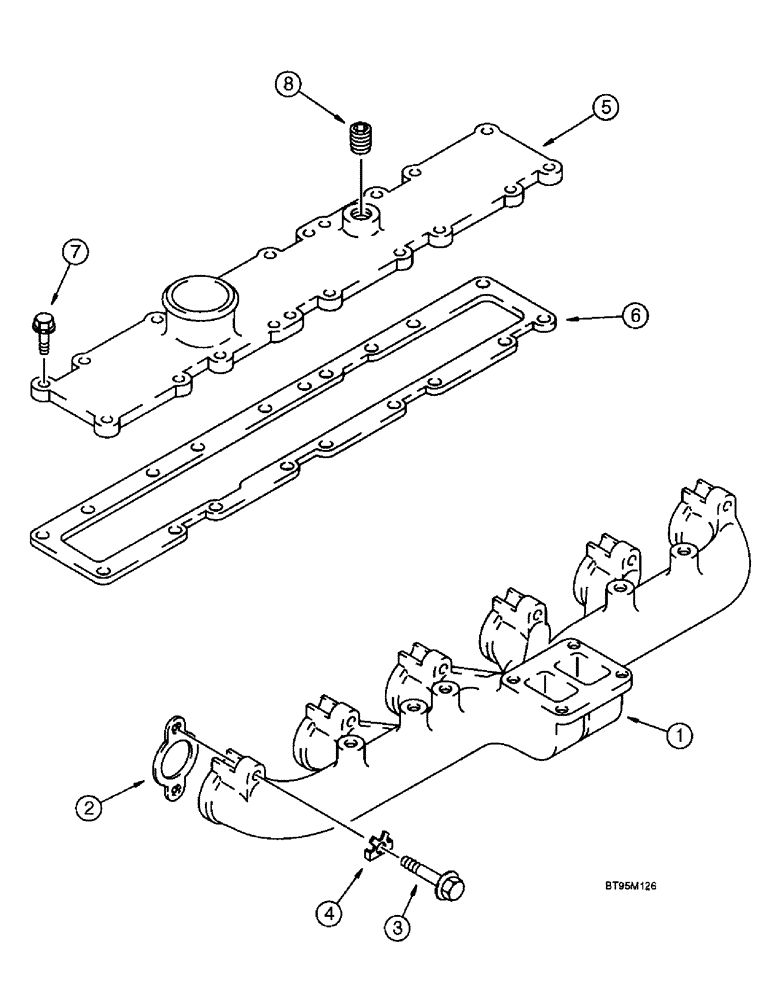

Схема запчастей Case 9045B - (2-16) - MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
6
3
7
4
2
5
8
1

Артикул

Название

Примечание

Количество

1

J932183

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

2

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick

1шт.

3

J929537

BOLT

- hex, special, exhaust manifold to cylinder head

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, manifold bolt

12шт.

5

J922648

COVER ASSY

COVER - intake manifold

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold

1шт.

7

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 30 mm, intake manifold cover to cylinder head

18шт.

8

A77429

PLUG

- hex socket, 1/2 inch PT, intake

1шт.

Выбрано товаров: 8
