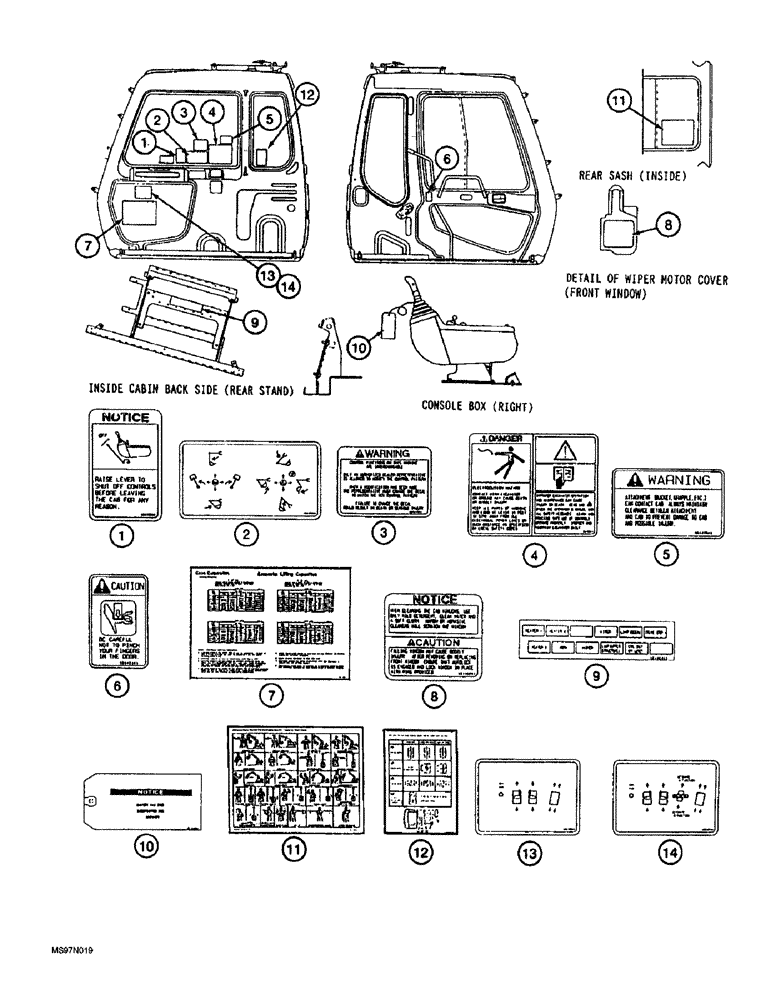

Запчасти Case 9045B (9-112) - DECALS - ENGLISH LANGUAGE, OPERATOR’S COMPARTMENT (09) - CHASSIS

1

161732A1

DECAL

- Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

- control pattern

1шт.

3

162140A1

WARNING DECAL

DECAL - Warning, control functions on this machine are interchangeable

1шт.

4

161469A1

DECAL

- Danger, electrocution hazard

1шт.

5

161470A1

DECAL

- Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

- Caution, be careful not to pinch your fingers

1шт.

7

165850A1

DECAL

- excavator lifting capacities

1шт.

8

161460A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause

1шт.

9

161464A1

DECAL

- right-hand control console

1шт.

10

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

11

162163A1

DECAL

- hand signal chart

1шт.

12

164781A1

DECAL

- auxiliary hydraulics

1шт.

13

161468A1

DECAL

- diagram, operating controls, without auxiliary option

1шт.

14

162187A1

DECAL

- diagram, operating controls, with auxiliary option

1шт.

NOT SHOWN IN CAB COMPARTMENT---Decal Label, Warning P/N 166069A1 is used on the 9045B per Sumitomo change LF9278. JCL See CAT. 7-2970, Fig. 9-111, for copy of decal

1шт.

All "B" series Excavators offer a John Deere conversion parts kit P/N 165849A1 (except 9007B uses P/N 167145A1). The decal for control pattern is P/N 190282A1, includes the decal and instruction sheet. CAM

1шт.
